Name: HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP28-LR-10KM
Price: 130.00 USD
Availability: InStock

Rumah > Produk > Modul Transceiver optik >

HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

Tempat asal:

Cina

Nama merek:

HiLink or OEM

Sertifikasi:

CE FCC ROSH

Nomor model:

HL-SFP28-LR-10KM

Hubungi Kami

Minta Kutipan

HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

Rincian produk

Kecepatan Data:

25Gbps

Panjang gelombang:

1310 nm

Tipe Konektor:

Jarak Transmisi:

10km

Konsumsi Daya:

<1,2 W

Suhu pengoperasian:

-40°C hingga +85°C

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Bisa dinegosiasikan

Kemasan rincian

Biasa atau OEM

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, Paypal

Menyediakan kemampuan

2000pcs per minggu

Produk terkait

HL-SFP28-25G-SR 25Gbps SFP28 SR Dual LC Optical Transceiver with 850nm VCSEL and 100m Reach

Dapatkan Harga Terbaik

HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

Dapatkan Harga Terbaik

Video

100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Transceiver Optik DOM

Dapatkan Harga Terbaik

Video

QSFP28-BX-D40 100G QSFP28 40KM 1304/1309nm BIDI Transceiver Optik EML+APD Transceiver SFP

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

HL-SFP28-LR-10KM 25G SFP28 10km Dual LC Transceivers

Product Overview

The HL-SFP28-LR-10KM Transceiver is designed for 10km reach service 25.78Gb/s 1310nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It features low power consumption, operates on a 3.3V DC power supply, and is available in industrial temperature range. Compliant with SFP28 MSA, SFF-8431 and SFF-8432 standards.

The optical assembly features low jitter and low bit error rate with a DML laser transmitter and PIN/TIA receiver. It utilizes internal clock and data recovery (CDR) units on transmitter and receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

Key Features

Operating data rate up to 25.78Gbps
Rate Adaptation
Up to 10km transmission distance
High sensitivity Pin photodiode and TIA
LC duplex connector
Hot pluggable 20pin connector
Low power consumption <1.2 W
Single +3.3V±5% power supply
Compliant with SFF-8472 & IEEE 802.3cc
Fully RoHS Compliant
Operating temperature range:
- Commercial: 0°C to +70°C
- Industrial: -40°C to +85°C

Applications

Data Center Backbone
Ethernet Switches
High-speed Servers
High-performance Computing Clusters
SAN, Routers, Hubs, Load Balancer

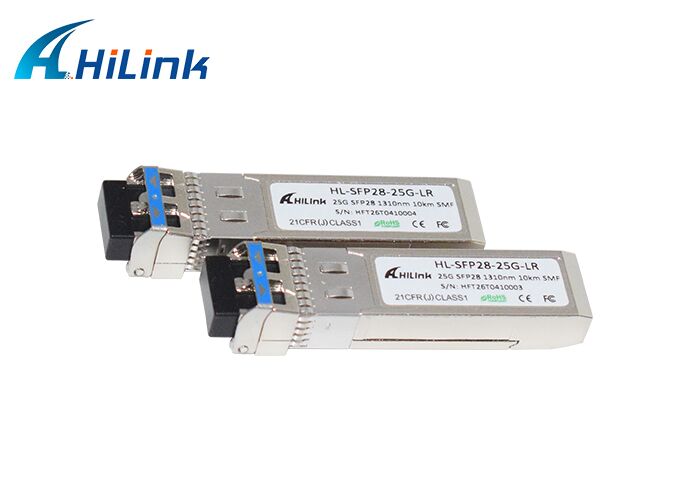

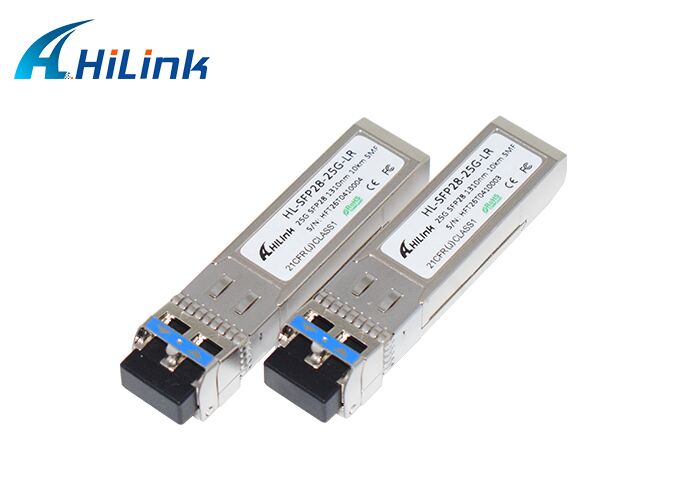

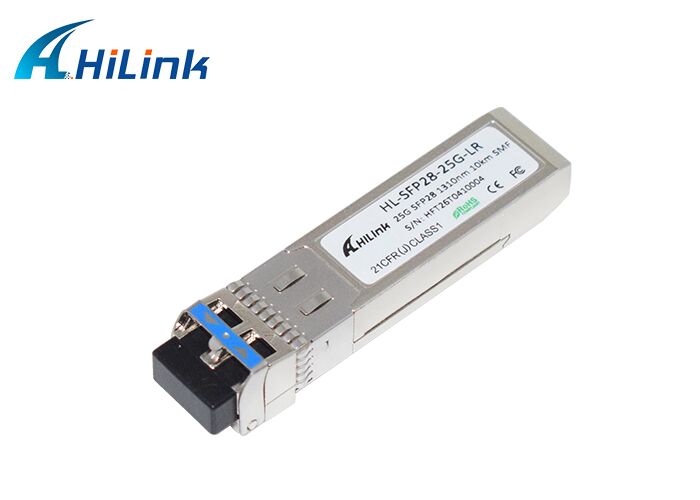

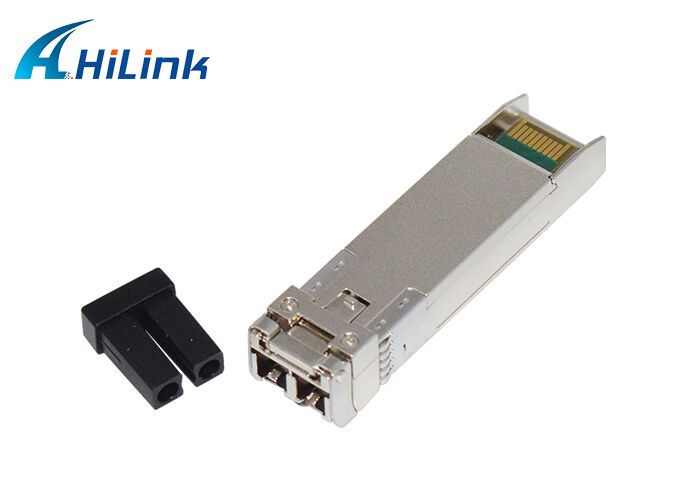

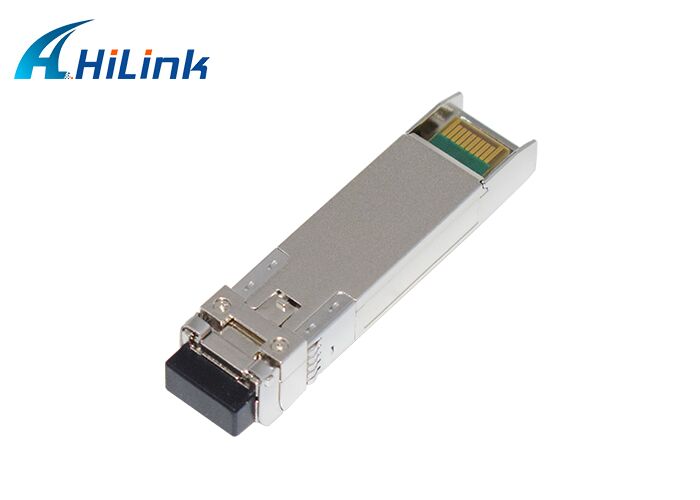

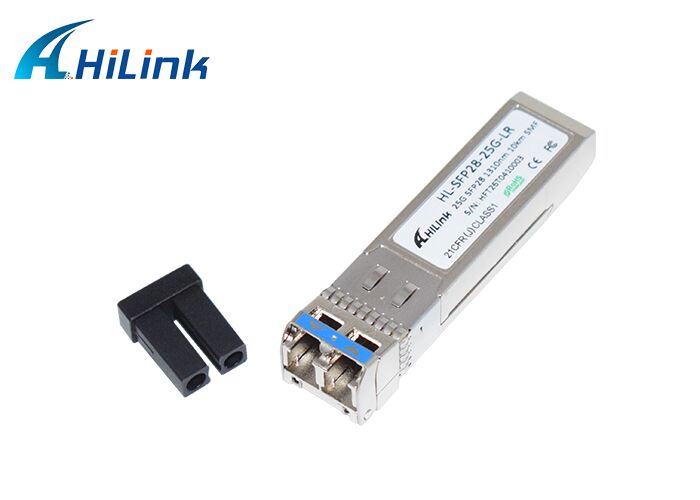

Product Images
