Name: HL-SFP28-25G-SR 25Gbps SFP28 SR Dual LC Optical Transceiver with 850nm VCSEL and 100m Reach
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP28-25G-SR
Price: 130.00 USD
Availability: InStock

Rumah > Produk > Modul Transceiver optik >

HL-SFP28-25G-SR 25Gbps SFP28 SR Dual LC Optical Transceiver with 850nm VCSEL and 100m Reach

Tempat asal:

Cina

Nama merek:

Hilink or OEM

Sertifikasi:

CE FCC ROSH

Nomor model:

HL-SFP28-25G-SR

Hubungi Kami

Minta Kutipan

HL-SFP28-25G-SR 25Gbps SFP28 SR Dual LC Optical Transceiver with 850nm VCSEL and 100m Reach

Rincian produk

Kecepatan Data:

25Gbps

Tipe Konektor:

Jenis Laser:

VCSEL

Panjang gelombang:

850 nm

Jarak Transmisi:

100m

Suhu pengoperasian:

0°C~70°C

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Bisa dinegosiasikan

Kemasan rincian

Biasa atau OEM

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, Paypal

Menyediakan kemampuan

2000pcs per minggu

Produk terkait

HL-SFP28-25G-SR 25Gbps SFP28 SR Dual LC Optical Transceiver with 850nm VCSEL and 100m Reach

Dapatkan Harga Terbaik

HL-SFP28-LR-10KM 25Gbps SFP28 Transceiver with 10km Transmission and 1310nm Wavelength for High-Speed Data Centers

Dapatkan Harga Terbaik

Video

100G BIDI 80KM 1280/1300nm WDM QSFP28 80KM Transceiver Optik DOM

Dapatkan Harga Terbaik

Video

QSFP28-BX-D40 100G QSFP28 40KM 1304/1309nm BIDI Transceiver Optik EML+APD Transceiver SFP

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

HL-SFP28-25G-SR 25G SFP28 SR Dual LC Optical Transceivers

Product Overview

The HL-SFP28-25G-SR Transceiver is designed for 100m reach service at 25.78Gb/s and 10.3125Gb/s 850nm multi-mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It features low power consumption, operates on a 3.3V DC power supply, and is available in industrial temperature ranges.

Compliant with SFP28 MSA, SFF-8431 and SFF-8432 standards, this transceiver features a DML laser transmitter and PIN/TIA receiver with low jitter and low bit error rate. It utilizes internal clock and data recovery (CDR) units on transmitter and receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible, and the device is Class I laser safety compliant.

Key Features

25Gbps & 10Gbps serial optical interface
Rate Adaptation capability
850nm VCSEL transmitter and GaAs PIN PD receiver
Wide operating temperature range (0°C to 70°C)
Maximum link length of 70m via OM3 multimode fiber (MMF)
Maximum link length of 100m via OM4 multimode fiber (MMF)

Applications

Inter Rack Connection
High-speed Servers
High-performance Computing Clusters
SAN, Routers, Hubs, Load Balancer

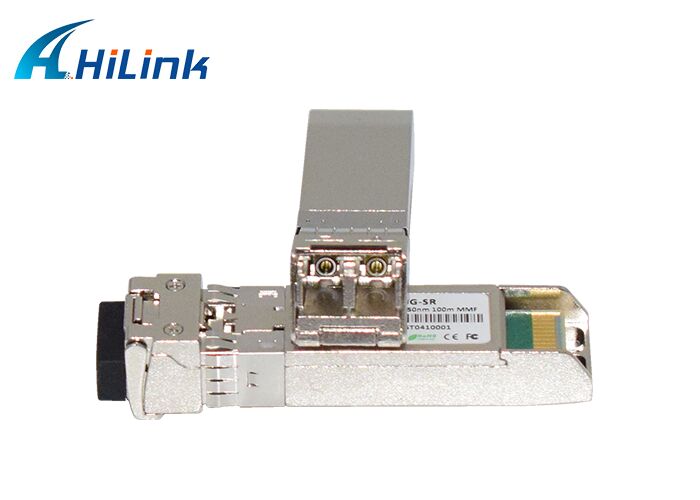

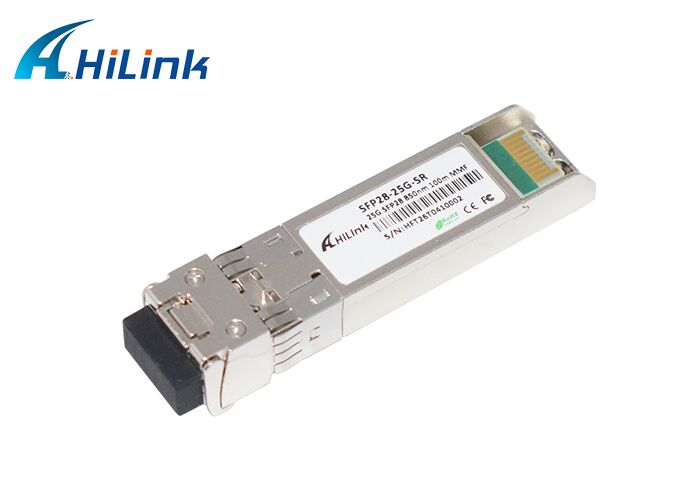

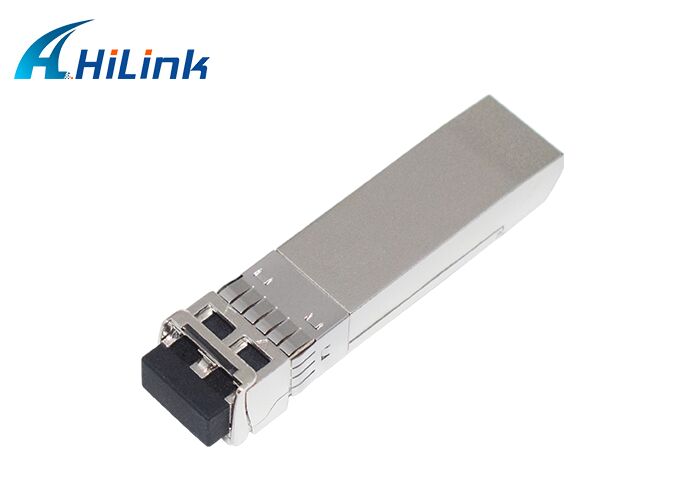

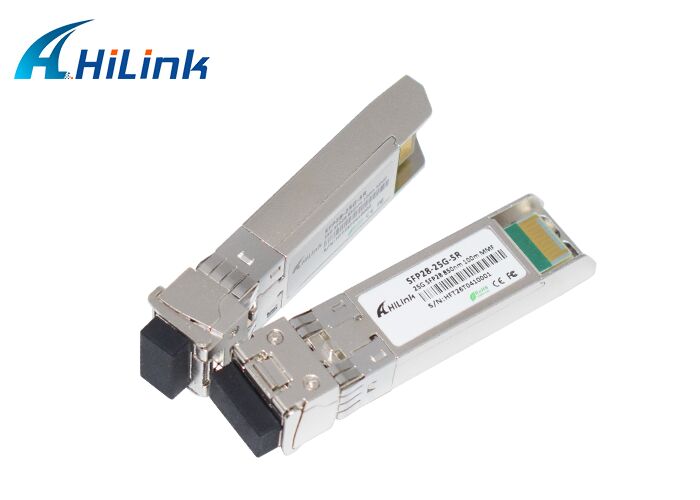

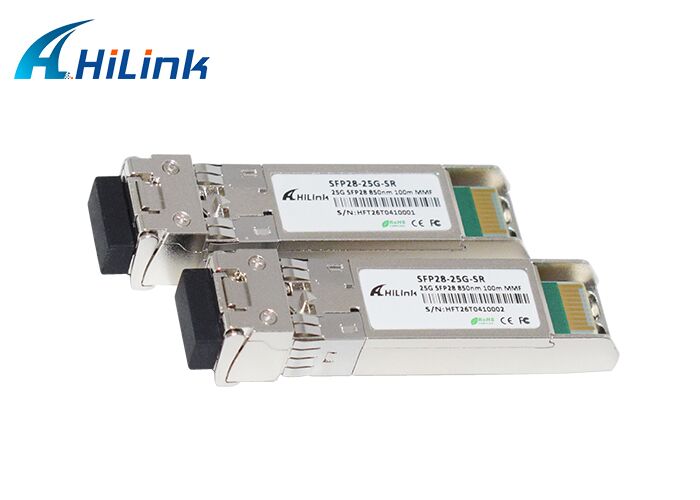

Product Images
