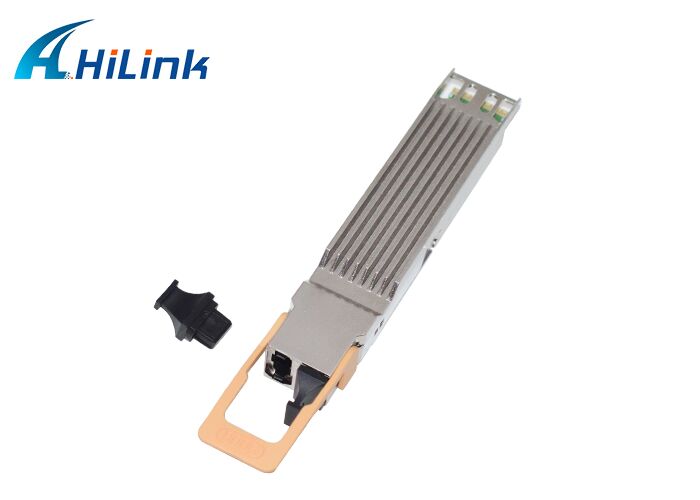

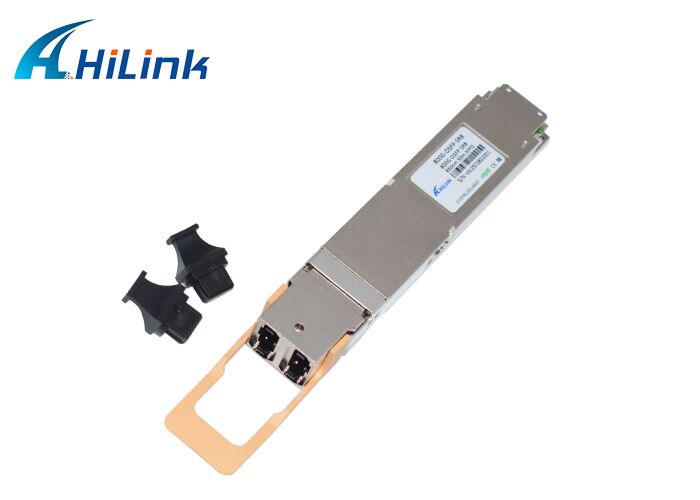

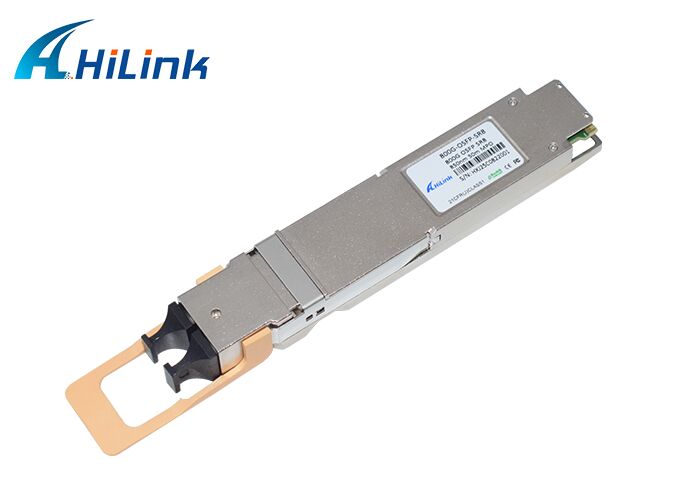

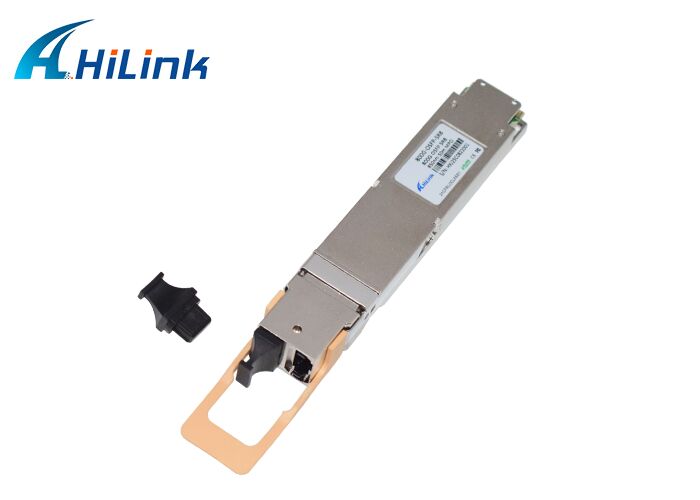

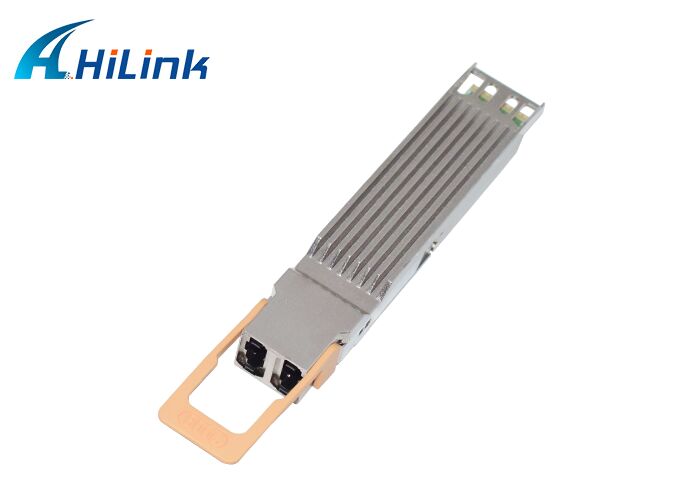

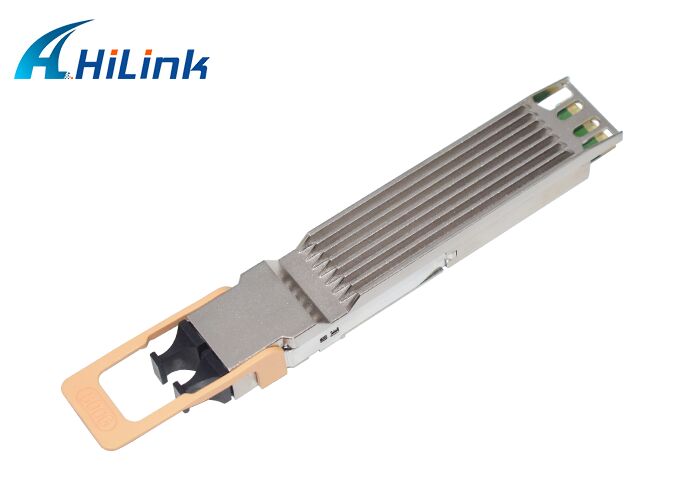

Name: OSFP800 800G 2xSR4 Optical Transceiver with 800Gb/s Data Speed, 100m Transmission, and 15W Power Consumption
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-800G-OSFP-SR8
Price: 130.00 USD
Availability: InStock

Rumah > Produk > Modul Transceiver optik >

OSFP800 800G 2xSR4 Optical Transceiver with 800Gb/s Data Speed, 100m Transmission, and 15W Power Consumption

Tempat asal:

Cina

Nama merek:

HiLink or OEM

Sertifikasi:

CE, FCC, ROSH

Nomor model:

HL-800G-OSFP-SR8

Hubungi Kami

Minta Kutipan

Rincian produk

Kecepatan Data:

Hingga 106,25 Gb/dtk per saluran

Jarak Transmisi:

100m

Konsumsi Daya:

15W

Tipe Konektor:

MPO12-APC

Suhu pengoperasian:

0 ~ +70 ℃

Catu daya:

Tunggal +3.3V

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Bisa dinegosiasikan

Kemasan rincian

Paket Normal Atau OEM

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, Paypal

Menyediakan kemampuan

2000pcs per minggu

Produk terkait

Hilink 200G QSFP56 Compatible Active Optical Cable with Customizable Length for High-Speed Data Transmission

Dapatkan Harga Terbaik

Hilink 200G QSFP56 to 2*100G Active Optical Cable with Customizable Length and 3 Years Warranty

Dapatkan Harga Terbaik

Hilink HL-QSFP200G-LR8 200G QSFP DD PSM8 Optical Transceiver dengan Jarak 10km dan Desain Hot Pluggable

Dapatkan Harga Terbaik

Transceiver QSFP56 Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 Dengan Pemantauan Diagnostik

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

OSFP800 800G 2xSR4 Optical Transceiver

Product Overview

This 800Gb/s OSFP800 2xSR4 optical module is designed for 100m optical communication applications. The module converts 8 channels of 100Gb/s (PAM4) electrical input data to 8 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 800Gb/s. On the receiver side, it converts 8 channels of parallel optical signals back into electrical output data. An optical fiber cable with dual MPO12-APC connectors plugs directly into the module receptacle. Host FEC is required to support up to 100m fiber transmission.

Key Features

Up to 106.25 Gb/s data rate per channel using PAM4 modulation
Support for 800GAUI-8 electrical interface
Integrated 850nm VCSEL array and PD array
Digital Diagnostic Monitoring (DDM) function implemented
Hot-pluggable design
Single +3.3V power supply

Technical Standards

Compliant with OSFP MSA 5.0
Compliant with CMIS 4.0
8x106.25Gb/s electrical interface (800GAUI-8)
Maximum power consumption: 15W
Single +3.3V power supply
Case temperature range: 0°C to +70°C
RoHS 2.0 compliant

Applications

Data centers and Cloud Networks
