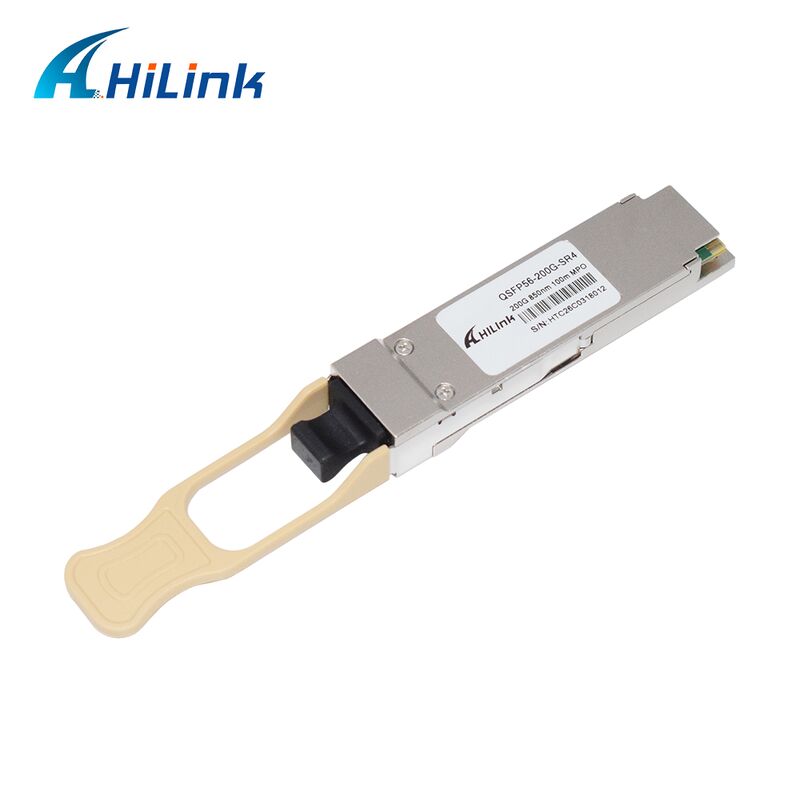

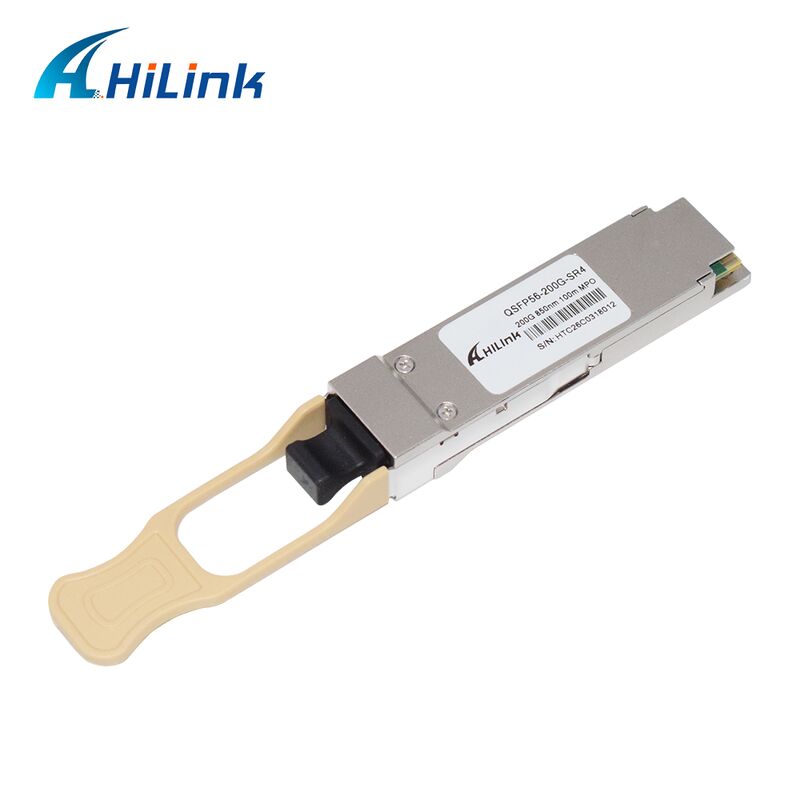

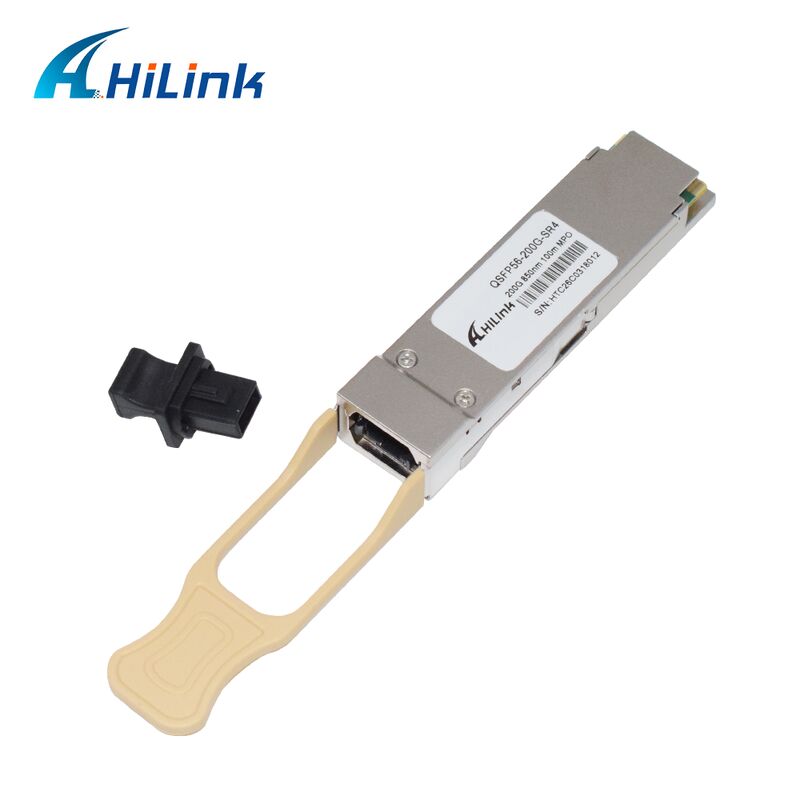

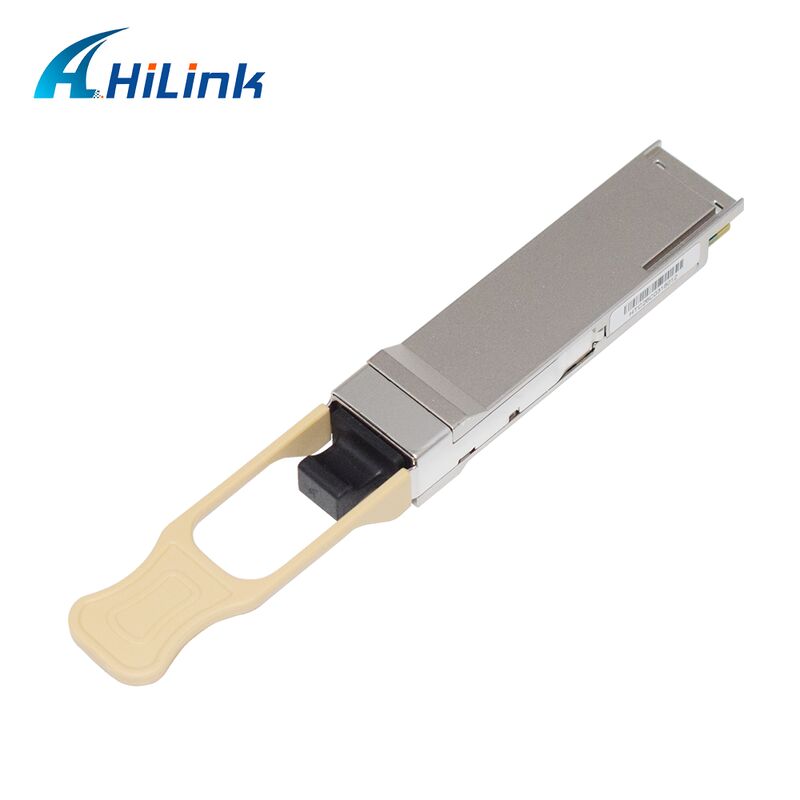

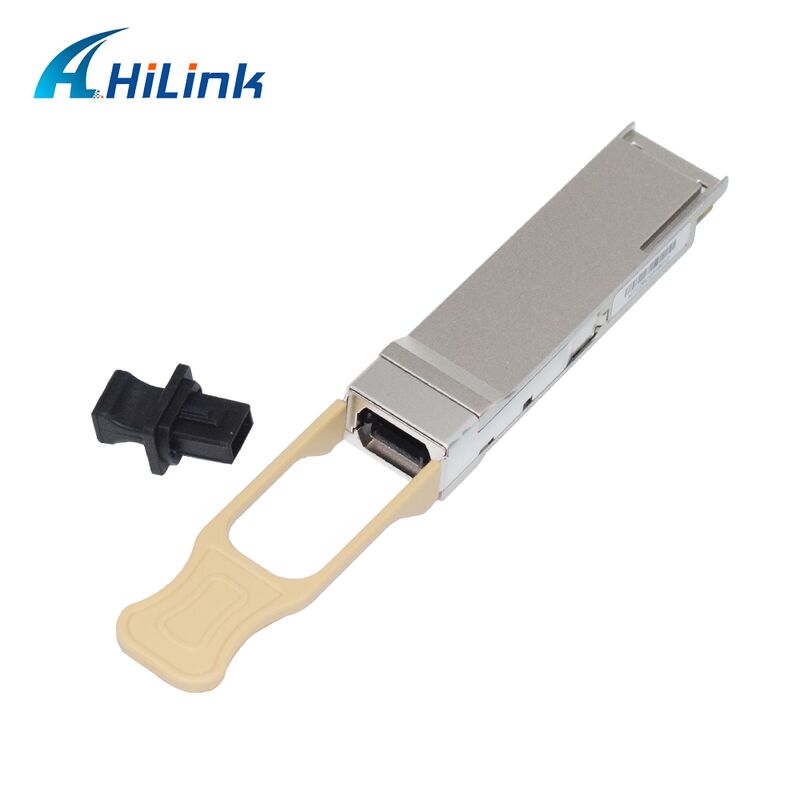

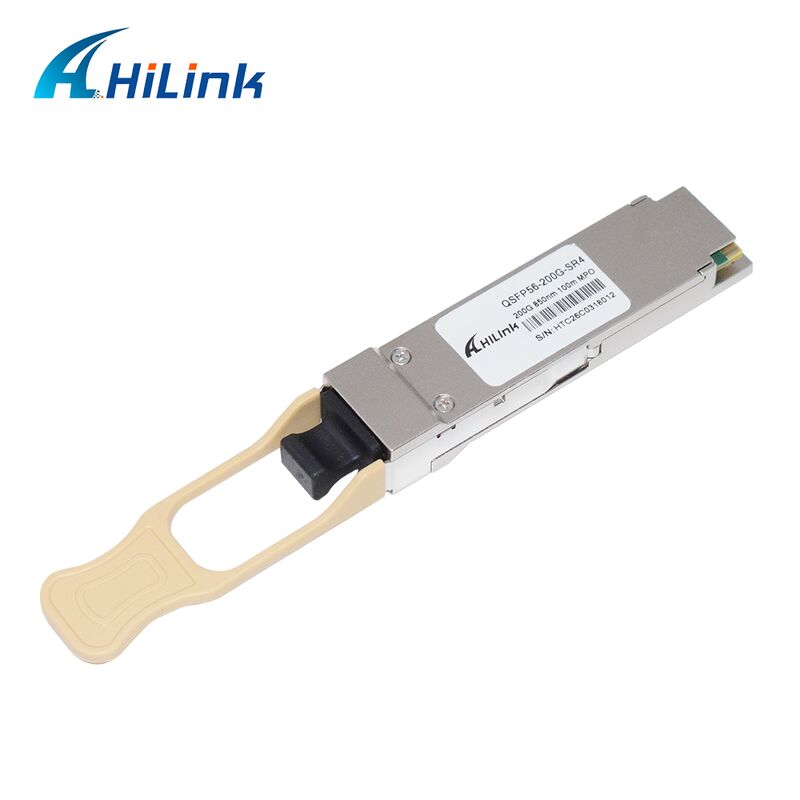

Name: Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP56-200G-SR4
Price: 66.00 USD
Availability: InStock

Rumah > Produk > Modul Transceiver optik >

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Tempat asal:

Guangdong, Tiongkok

Nama merek:

Hilink

Sertifikasi:

CE RoHs

Nomor model:

HL-QSFP56-200G-SR4

Hubungi Kami

Minta Kutipan

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Rincian produk

Nama Produk:

QSFP56-200G-SR4

Kecepatan Data:

200 gram

Jarak:

100m

Jaminan:

3 tahun

Sertifikasi:

RoHS compliant

Pesanan OEM/ODM:

Mendukung

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

54~78USD/UNIT

Kemasan rincian

Paket Normal Atau OEM

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

L/C,T/T,Western Union

Produk terkait

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Dapatkan Harga Terbaik

Hilink QDD-400G-SR8 Multi-mode 850nm 400G BASE-SR8 QSFP-DD Transceiver, With Diagnostic Monitoring

Dapatkan Harga Terbaik

Video

QDD-400G-SR8 400G MMF 850nm QSFP-DD PAM4 100m DOM MTP/MPO-16 Transceiver Optik

Dapatkan Harga Terbaik

QSFP56 200G Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

Hilink QSFP56-200G-SR4 Multi-mode 850nm 200G BASE-SR4 QSFP56 Transceiver With Diagnostic Monitoring

Feel free to contact us for details, compatibility, customization and wholesale pricing.

The QSFP56-200G-SR4 is a 4-Channel, Pluggable, Fiber-Optic QSFP56 for 200Gbps SR Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 53.125Gbps per lane up to 70m using OM3 fiber and 100m using OM4 fiber. The optical interface uses MPO receptacles.

This module is designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 38 contact edge type connector.

Key Features

Hot-pluggable QSFP56 form factor
Data Rate up to 53.125 Gb/s PAM4 per lane
4x53Gbps PAM4 transmitter and PAM4 receiver
4 channels 850nm VCSEL laser array and 4 channels PIN photo-detector array
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
Digital diagnostics functions are available via the I2C interface
Single 3.3V Power Supply and Power Dissipation: QSFP56-200G-SR4C < 5.5W / QSFP56-200G-SR4B < 6W
MPO-12 connector
Operating Case Temperature: 0℃~+70℃
RoHS compliant

Applications

200G BASE-SR4 Ethernet
