Name: 25Gb/s SFP28 BIDI Optical Transceiver with 60km Transmission and DDM Support
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: SFP28-25G-UD-60
Price: 130.00 USD
Availability: InStock

Rumah > Produk > Modul Transceiver optik >

25Gb/s SFP28 BIDI Optical Transceiver with 60km Transmission and DDM Support

Tempat asal:

Cina

Nama merek:

HiLink or OEM

Sertifikasi:

CE FCC ROSH

Nomor model:

SFP28-25G-UD-60

Hubungi Kami

Minta Kutipan

Rincian produk

Kecepatan Data:

25G

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pasang

Harga

Bisa dinegosiasikan

Kemasan rincian

Paket Normal Atau OEM

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, Paypal

Menyediakan kemampuan

2000 pasang per minggu

Produk terkait

25G SFP28 BIDI 10km/20km/40km/50km/60km Optic Module

Dapatkan Harga Terbaik

OSFP Transceiver 400G Data Speed 10km Transmission 1310nm Wavelength for 400G Ethernet and Data Centers

Dapatkan Harga Terbaik

Video

25G SFP28 BIDI 50km 1270/1310nm Modul

Dapatkan Harga Terbaik

Video

QSFP28 100G BIDI ZR4 Transceiver Optik dengan Transmisi 80KM dan Konektor LC

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

25Gb/s SFP28 BIDI 60km DDM Optical Transceiver

Product Overview

The SFP28-25G-UD-60 series single mode transceiver is a small form factor pluggable module designed for duplex optical data communications. This module operates on single mode fiber with nominal wavelengths of 1295.56nm or 1309.14nm, featuring a multiple quantum well EML transmitter that is Class 1 laser compliant according to International Safety Standard IEC-60825.

The electrical interface complies with SFI electrical specifications, with transmitter input and receiver output impedance of 100 Ohms differential. Data lines are internally AC coupled, providing differential termination and reduced differential to common mode conversion for quality signal termination and low EMI.

Key Features

Support data rate up to 25.78125Gb/s
Hot-Pluggable SFP Footprint and Single LC Connector
Up to 60km reach for G.652 SMF
EML TX and Integrated APD RX
Temperature Range: Commercial: 0°C ~70°C / Industrial: -40°C ~85°C
Power consumption: Commercial: 1.5W / Industrial: 1.8W
RoHS compliance
Compliant to IEEE 802.3cc, SFF-8472 and SFF-8419
Complies with EU Directive 2015/863/EU

Applications

25G Ethernet
CPRI option 10

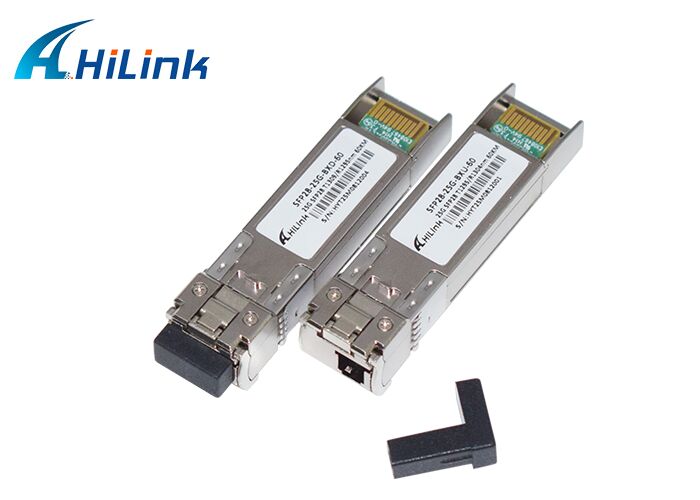

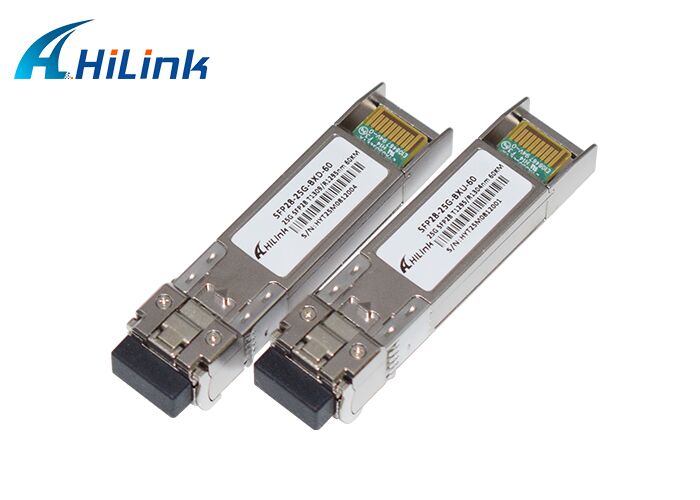

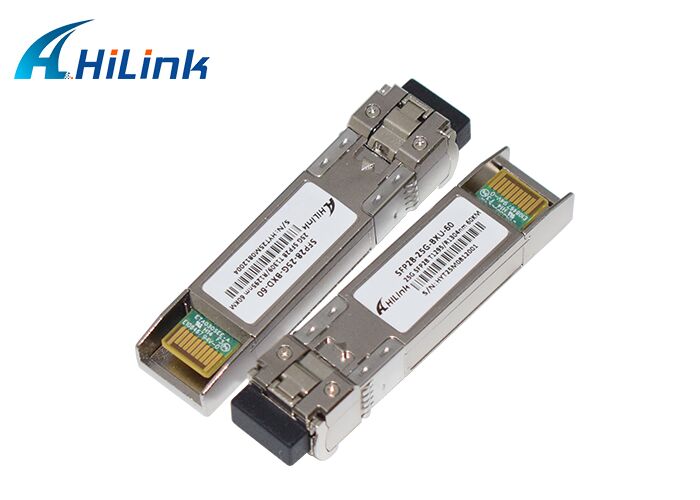

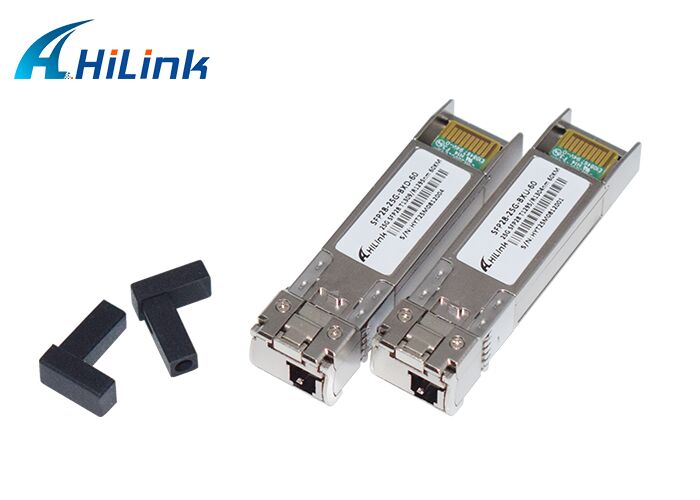

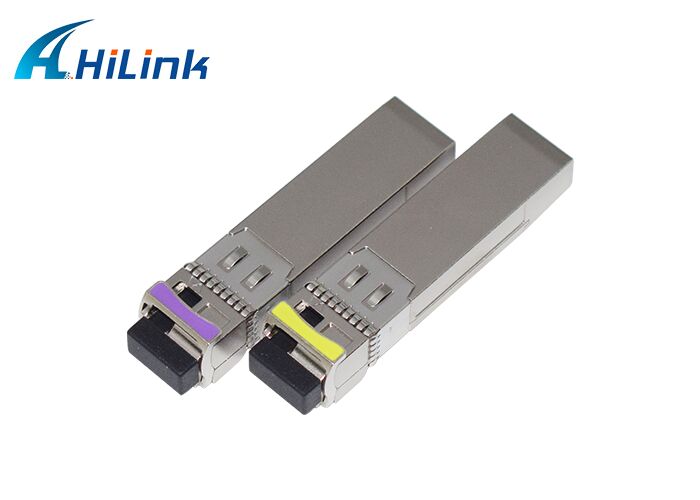

Product Images
