Name: OSFP 400G LR4 1310nm 10km Transceiver Module
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: OSFP-400G-LR4
Price: 130.00 USD
Availability: InStock

Rumah > Produk > Modul Transceiver optik >

OSFP 400G LR4 1310nm 10km Transceiver Module

OSFP 400G LR4 transceiver module

1310nm 10km optical transceiver

400G LR4 fiber optic module

Tempat asal:

Guangdong, Tiongkok

Nama merek:

Hilink

Sertifikasi:

CE Rohs

Nomor model:

OSFP-400G-LR4

Hubungi Kami

Minta Kutipan

OSFP 400G LR4 1310nm 10km Transceiver Module

Rincian produk

Nama Produk:

OSFP-400G-LR4

Kecepatan Data:

400G

Mencapai:

10km

menggunakan:

Pusat Data

Konektor serat:

Duplex LC

Suhu Operasional:

0 hingga 70 ℃

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Send Inquiry know latest price

Kemasan rincian

Kotak plastik+karton

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, Alipay, PayPal/WeChat/Trade Assurance

Menyediakan kemampuan

2000 potongan/minggu

Produk terkait

Hilink 400G OSFP Transceiver with 1310nm Wavelength and 10km Distance for High-Speed Data Transmission

Dapatkan Harga Terbaik

HL-Cir-1310 3-Port Circulator Port1&Port3-LC/UPC Port2-SC/APC 1310nm/1550nm/1610nm ABS Box untuk Pusat Data

Dapatkan Harga Terbaik

Hilink 100G QSFP28 Optical Transceiver Module dengan jarak 100km 100G Data Rate dan ZR4+ Compliance

Dapatkan Harga Terbaik

HL-QSFP28-100G-FR1 Modul Transceiver Optik QSFP28 FR Single Lambda 100Gbps dengan Jangkauan 2km

Dapatkan Harga Terbaik

Hubungi Kami

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Hubungi Sekarang

Deskripsi Produk

OSFP 400G LR4 1310nm 10km Transceiver Module

Hilink's OSFP transceiver module is designed for use in 400 Gigabit Ethernet links over 10km single mode fiber. The module has 8 independent electrical input/output channels operating up to 53.125Gbps per channel. The integrated GearBox in module converts the 8 channels of 53.125Gbps (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 106.25Gbps (PAM4) operation for an aggregate data rate of 400Gb/s. The four transmitter/receiver units operate on the ITU G.694.2 CWDM grid near 1300nm. The electrical interface of the module is compliant with the 400GAUI-8 interface as defined by IEEE 802.3bs, and compliant with OSFP MSA.

Key Features

Supports 425Gbps
Single 3.3V Power Supply
Up to 10km over SMF with KP4 FEC supported at the Host side
Duplex LC connector
8x53.125Gbps (PAM4) electrical interface
PIN and TIA array on the receiver side
Power dissipation < 8W
Case temperature range: 0°C to 70°C (commercial)
Safety Certification: TUV/UL/FDA*1
RoHS Compliant

Applications

400G Ethernet
400G-LR4 applications
Data center
InfiniBand

Transmitter Specifications

The transmitter path contains an 8x50Gbps 400GAUI-8 electrical input with Equalization (EQ) block, integrated electrical multiplexer, integrated driver, 4 externally modulated lasers, optical multiplexer and diagnostic monitors. The integrated electrical multiplexer and integrated driver converts 8 channels of 50Gbps (PAM4) electrical input data to 4 channels of 100Gbps (PAM4) parallel CWDM optical signals. The transmitter complies with EN 60825 and CDRH Class 1 human eye safety compliance.

Receiver Specifications

The receiver path contains optical de-multiplexer, eight PIN photodiodes, trans-impedance amplifiers (TIA), integrated de-multiplexer and 8x50G 400GAUI-8 compliant electrical output blocks. The PIN-TIA and integrated de-multiplexer converts 4 channels of 100Gbps (PAM4) parallel optical signals to 8 channels of 50Gbps (PAM4) electrical output data.

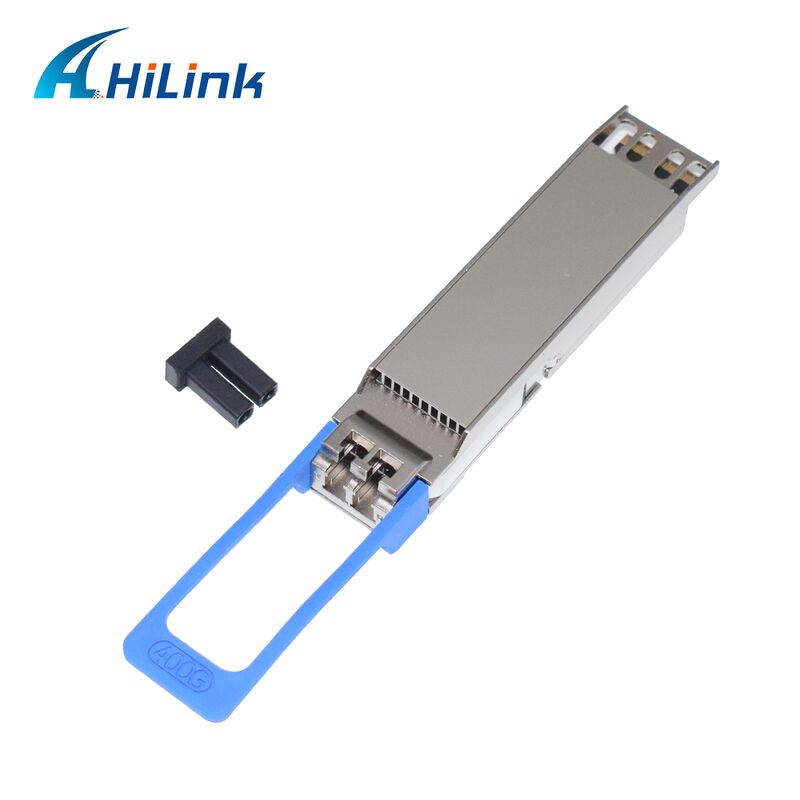

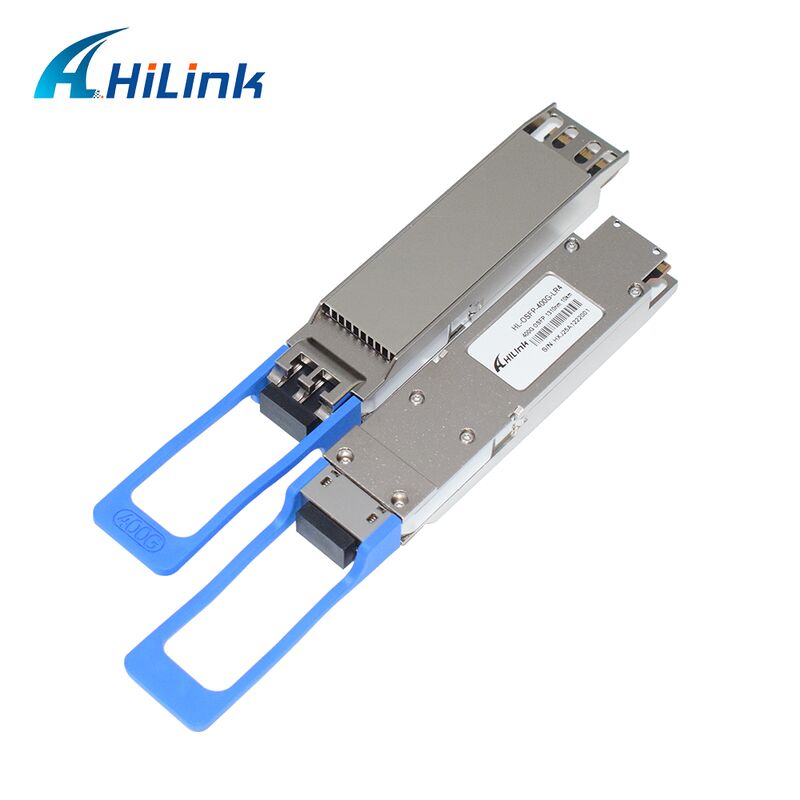

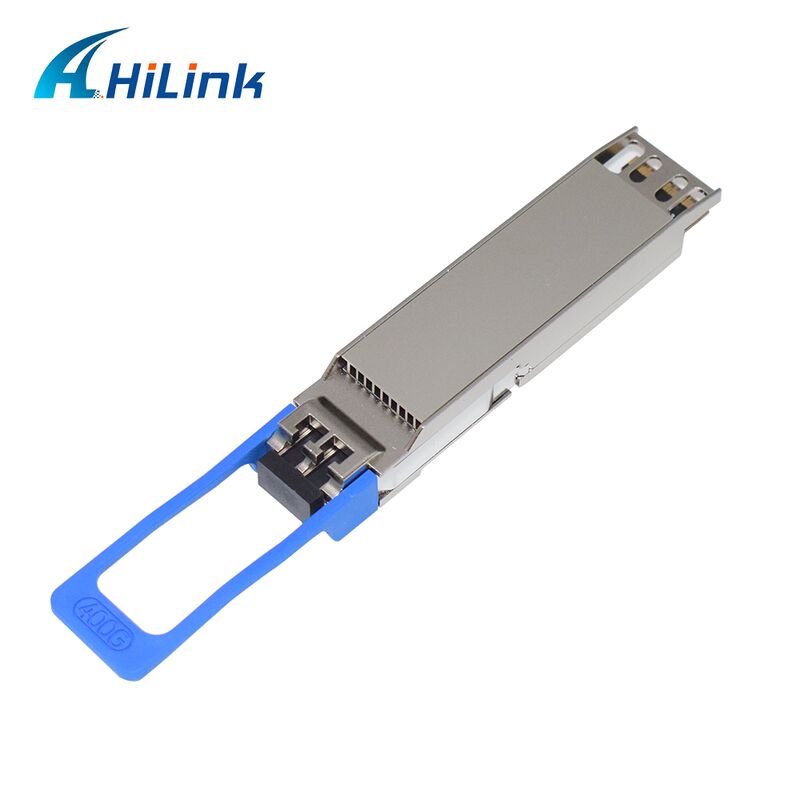

Product Images

Our Service

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
