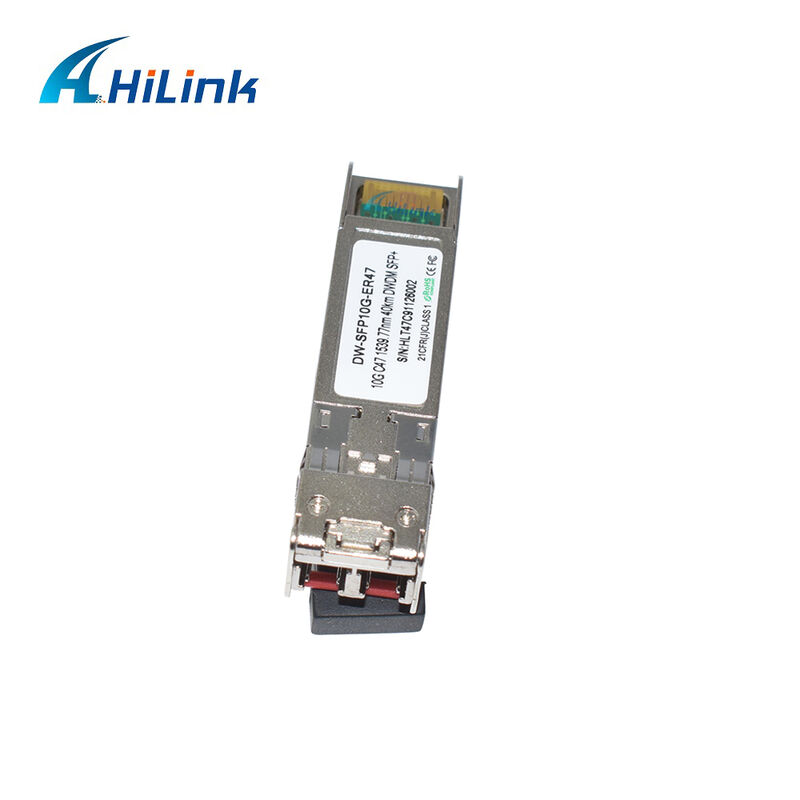

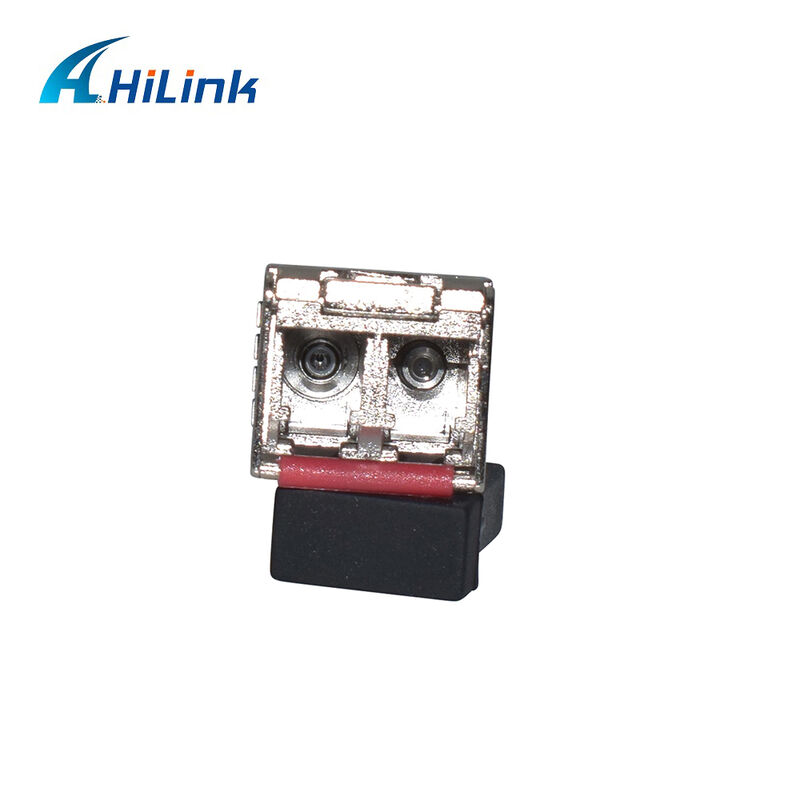

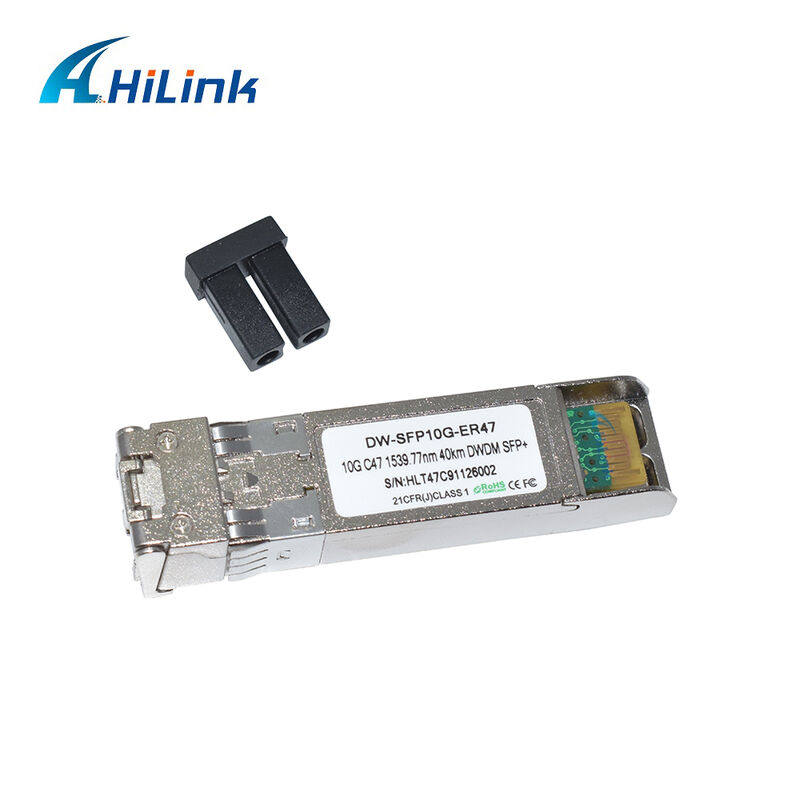

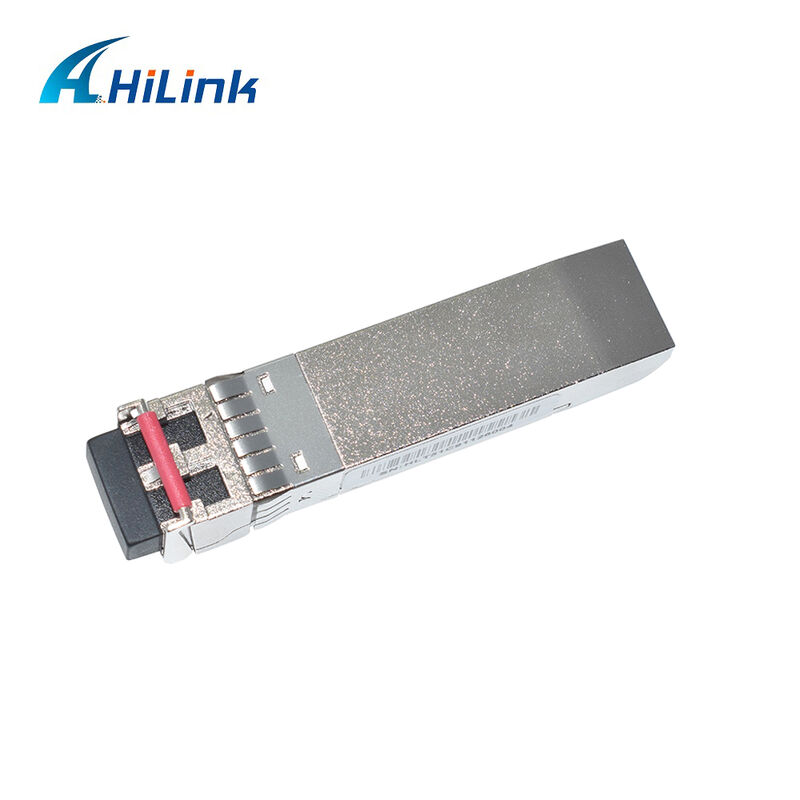

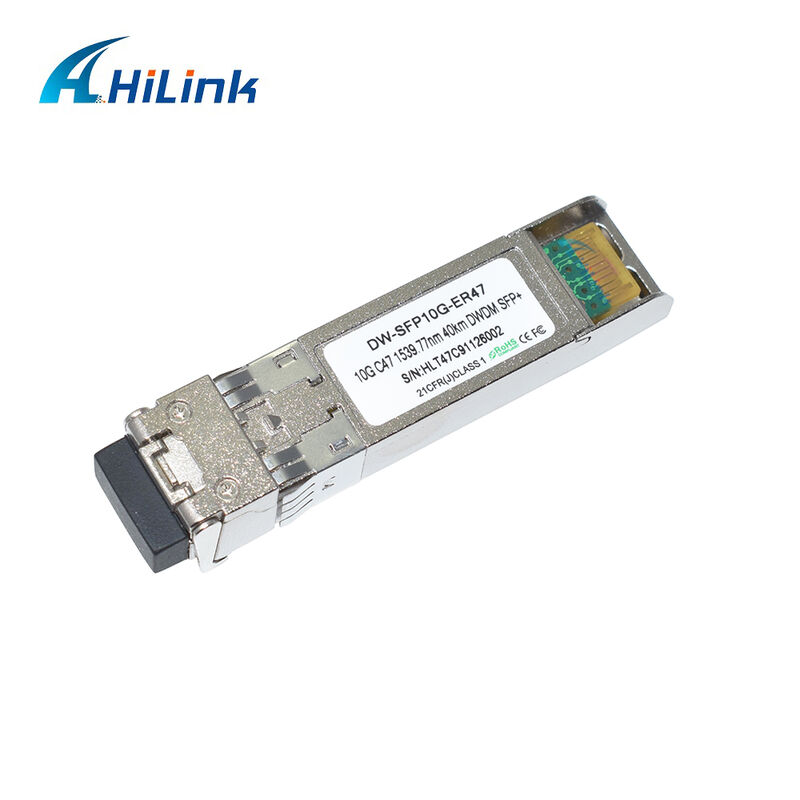

Name: 10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-DWSFP10G-ER
Price: 130.00 USD
Availability: InStock

Rumah > Produk > Modul Transceiver optik >

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

40km Distance Optical Transceiver Module

100GHz Channel Spacing SFP+ Transceiver

CH17~61 Wavelength 10G DWDM SFP+

Tempat asal:

Guangdong, Tiongkok

Nama merek:

Hilink

Sertifikasi:

CE RoHs

Nomor model:

HL-DWSFP10G-ER

Hubungi Kami

Minta Kutipan

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

Rincian produk

Nama Produk:

10G DWDM SFP+ 40KM

Kecepatan Data:

10 gram

Panjang gelombang:

CH17~61

Jarak:

40km

Jaminan:

3 tahun

Sertifikasi:

RoHS

Waktu Pengiriman:

3-7 hari kerja

OEM:

Mendukung

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Bisa dinegosiasikan

Kemasan rincian

Paket Normal Atau OEM

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

L/C,T/T,Western Union

Produk terkait

10G SFP+ DWDM Transceiver 80km 100km CH17~61 120km CH20~55 100GHz Industrial Commercial Temperature

Dapatkan Harga Terbaik

10G DWDM SFP+ Optical Transceiver Module with 40km Distance 100GHz Channel Spacing and CH17~61 Wavelength

Dapatkan Harga Terbaik

Hilink Customized MTP/MPO Harness Cables

Dapatkan Harga Terbaik

Kabel Patchcord MTP/MPO Kustom Hilink

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

10G SFP+ DWDM Optical Transceiver Module

HILINK's 10G DWDM SFP+ 40KM Enhanced Small Form Factor Pluggable transceivers are designed for use in 10-Gigabit Ethernet links up to 40km over Single Mode fiber. These high-performance, cost-effective solutions are optimized for telecommunications applications and comply with SFF-8431, SFF-8432 and ITU-T G.698.1 standards.

Product Overview

This transceiver features a cooled EML laser in the transmitter section and a PIN photodiode integrated with TIA in the receiver section. All modules satisfy Class I laser safety requirements and include digital diagnostics functions via a 2-wire serial interface as specified in SFF-8472, providing real-time access to operating parameters.

Key Features

Supports 9.95 to 11.3 Gb/s bit rates
Duplex LC connector
Hot pluggable SFP+ footprint
Cooled EML transmitter and PIN-TIA receiver
40km Single Mode Fiber connection capability
Low power consumption < 1.2W
100 GHz channel spacing
Digital Diagnostic Monitor Interface
Optical interface compliant to ITU-T 694.1 & G.698.1
Electrical interface compliant to SFF-8431 & SFF-8432
Operating case temperature options:
- Commercial: 0°C to 70°C
- Industrial: -5°C to 80°C

Applications

10G Ethernet
2x, 4x, 8x Fiber Channel
ITU-T G.698.1 compliant systems
Other optical link applications

Channel Selection Specifications

Channel	Frequency (THz)	Center Wavelength (nm)
17	191.7	1563.86
18	191.8	1563.05
19	191.9	1562.23
20	192.0	1561.42
21	192.1	1560.61
22	192.2	1559.79
23	192.3	1558.98
24	192.4	1558.17
25	192.5	1557.36
26	192.6	1556.55
27	192.7	1555.75
28	192.8	1554.94
29	192.9	1554.13
30	193.0	1553.33
31	193.1	1552.52
32	193.2	1551.72
33	193.3	1550.92
34	193.4	1550.12
35	193.5	1549.32
36	193.6	1548.51
37	193.7	1547.72
38	193.8	1546.92
39	193.9	1546.12
40	194.0	1545.32
41	194.1	1544.53
42	194.2	1543.73
43	194.3	1542.94
44	194.4	1542.14
45	194.5	1541.35
46	194.6	1540.56
47	194.7	1539.77
48	194.8	1538.98
49	194.9	1538.19
50	195.0	1537.40
51	195.1	1536.61
52	195.2	1535.82
53	195.3	1535.04
54	195.4	1534.25
55	195.5	1533.47
56	195.6	1532.68
57	195.7	1531.90
58	195.8	1531.12
59	195.9	1530.33
60	196.0	1529.55
61	196.1	1528.77

Available in channels 17 through 61 with 100 GHz spacing for flexible network deployment.
