Name: 25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP28-25G-B/D80
Price: 893.00 USD
Availability: InStock

Rumah > Produk > modul transceiver SFP >

25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM

25Gb/s SFP28 BIDI Transceiver

80km SFP28 BIDI Transceiver

RoHS 6 Compliance SFP28 Module

Place of Origin:

Guangdong, China

Nama merek:

HILINK

Sertifikasi:

CE FCC Rohs

Model Number:

HL-SFP28-25G-B/D80

Hubungi Kami

Minta Kutipan

25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM

Rincian produk

Products name:

25Gb/s 80Km SFP28 BIDI Transceivers

Connetor:

Simplex LC

Data rate:

25G

Distance:

80KM

Wavelength:

1304/1309

Temperature Range:

0℃ ~ +70℃

Sertifikasi:

CE RoHS FCC

Type:

Fiber Optic Transceivers, 25GSFP

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1pcs

Harga

Bisa dinegosiasikan

Packaging Details

Static bag, Plastic Flat, Retail box, by requires

Delivery Time

5-8workingdays

Payment Terms

Western Union,T/T,L/C

Supply Ability

100pcs/month

Produk terkait

25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication

Dapatkan Harga Terbaik

GPON OLT Transceiver SFP Module with 8dBm 9dBm Output and 2.5G Data Rate

Dapatkan Harga Terbaik

EPON OLT SFP Transceiver with PX20+ PX20++ PX20+++ for 1.25Gbps Data Rate and 20KM Transmission

Dapatkan Harga Terbaik

1.25G EPON ONU SFP Transceiver with SC/UPC Receptacle for 20KM Distance and 0℃ ~ +70℃ Temperature Range

Dapatkan Harga Terbaik

Hubungi Kami

86-755-8317-6243

Hubungi Sekarang

Deskripsi Produk

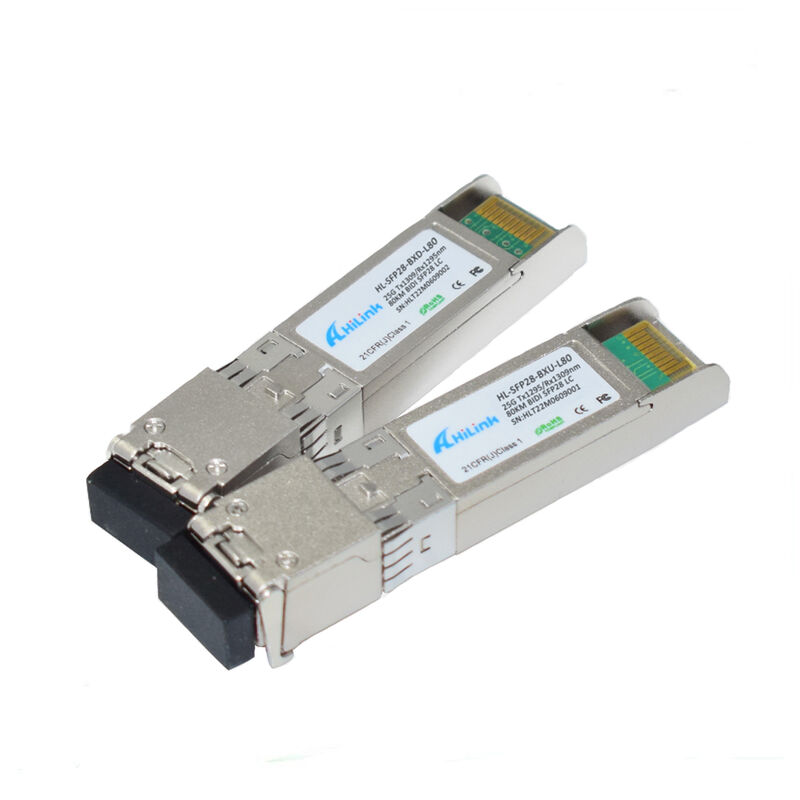

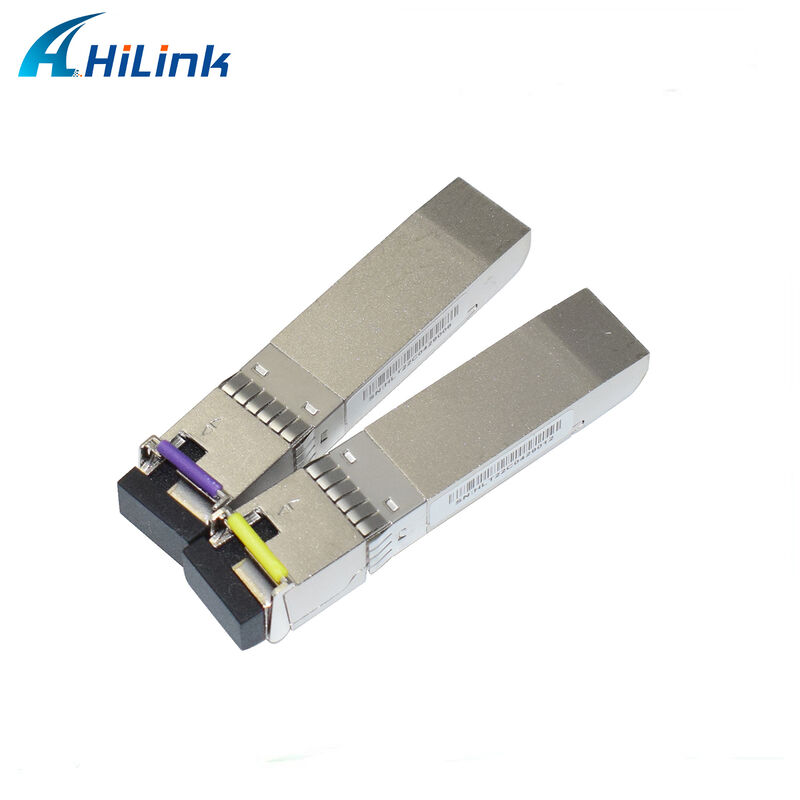

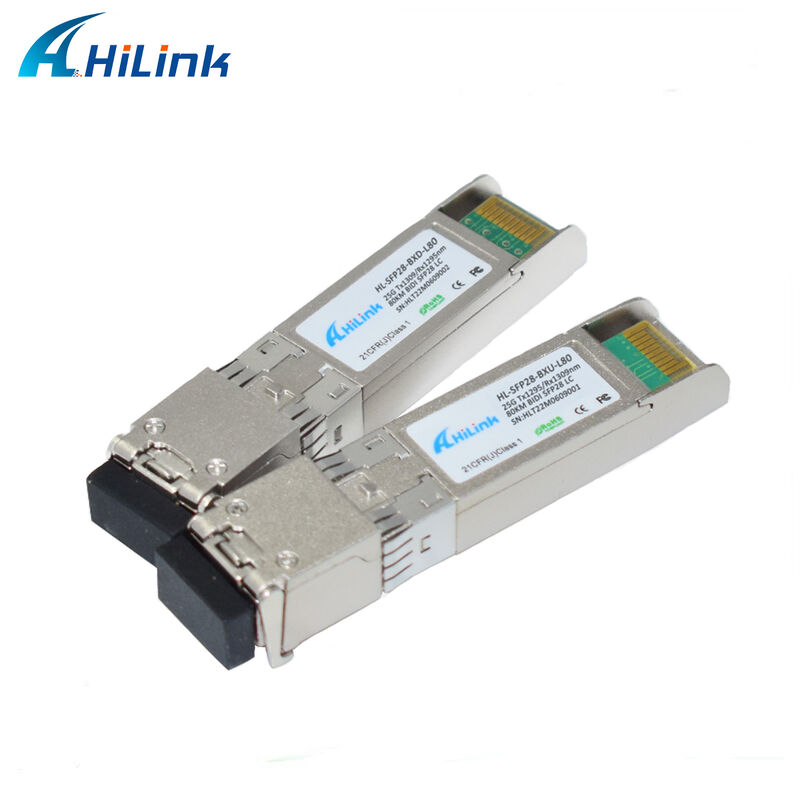

25Gb/s SFP28 BIDI 80km Optical Transceiver

Hot-Pluggable Single LC DDM RoHS 6 Compliance

The HL-SFP28-25G-U/D80 series single mode transceiver is a small form factor pluggable module for duplex optical data communications, designed for single mode fiber operation.

Key Features

Supports data rates up to 25.78125Gb/s
Hot-pluggable SFP footprint with single LC connector
Up to 80km reach for G.652 SMF
EML TX and integrated SOA & PIN TIA RX
Temperature range:
- Commercial: 0°C to 70°C
- Industrial: -40°C to 85°C
Power consumption:
- Commercial: 2.2W
- Industrial: 2.8W
RoHS 6 compliance
Compliant with IEEE 802.3cc, SFF-8472 and SFF-8419
Meets EU Directive 2015/863/EU

Technical Specifications

Operates at nominal wavelengths of 1295.56nm or 1309.14nm. The transmitter section uses a multiple quantum well EML, which is Class 1 laser compliant according to International Safety Standard IEC-60825.

The electrical interface is compliant to SFI electrical specifications with 100 Ohms differential impedance. Data lines are internally AC coupled for quality signal termination and low EMI.

Applications

25G Ethernet
CPRI option 10

Our Services

OEM and ODM

Custom OEM/ODM orders available upon request.

Quality Guarantee

All optical transceivers are brand new with new components, never using old or refurbished materials. Each unit undergoes functional and aging tests. We provide a 3-year warranty from shipment date.

Product Range

We supply compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and special transceiver modules compatible with most major brands.

Packaging & Shipping

International express shipping available via DHL, FedEx, EMS, TNT, UPS (3-7 day delivery).
