Name: 40G QSFP+ to 4*10G SFP+ 5M Passive Direct Attach Copper DAC Cable for 10G/40Gigabit Ethernet Data Centers
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: QSFP40G-4xSFP10G-DAC
Price: 893.00 USD
Availability: InStock

Rumah > Produk > Langsung memasang kabel tembaga >

40G QSFP+ to 4*10G SFP+ 5M Passive Direct Attach Copper DAC Cable for 10G/40Gigabit Ethernet Data Centers

40G QSFP+ to 4*10G SFP+ DAC Cable

5M Length Direct Attach Copper Cable

10G/40Gigabit Ethernet DAC Cable

Tempat asal:

CINA

Nama merek:

Hilink

Sertifikasi:

CE Rohs

Nomor model:

QSFP40G-4xSFP10G-DAC

Hubungi Kami

Minta Kutipan

40G QSFP+ to 4*10G SFP+ 5M Passive Direct Attach Copper DAC Cable for 10G/40Gigabit Ethernet Data Centers

Rincian produk

Kondisi:

Baru

Menggunakan:

Fttx

Tempat asal:

Guangdong, Cina

Jarak:

5M (atau disesuaikan)

Logo:

Dapat disesuaikan

Jenis Kabel::

Kabel DAC

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Need to negotiate

Kemasan rincian

Kotak plastik+karton

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, Alipay, PayPal/WeChat/Trade Assurance

Menyediakan kemampuan

2000 potongan/minggu

Produk terkait

Kabel Fiber Optik DAC Direct Attach Pasif SFP+ ke SFP+ 10G 1M Kabel DAC 10G

Dapatkan Harga Terbaik

Kabel DAC SFP28 ke SFP28 25G 1M 2M 3M 5M Kabel Tembaga Twinax Direct Attach Pasif

Dapatkan Harga Terbaik

2m SFP-H10GB-CU2M 10G SFP+ Passive Direct Attach Copper Twinax DAC Cable

Dapatkan Harga Terbaik

Kabel 400G QSFP-DD DAC Kabel 400G hingga 8 x 50G SFP56 Breakout

Dapatkan Harga Terbaik

Hubungi Kami

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Hubungi Sekarang

Deskripsi Produk

High Quality 40G QSFP+ to 4*10G SFP+ 5M Copper DAC Cable Breakout Passive Fiber Optic Equipment

Product Description

The QSFP+ to 4x SFP+ Passive cable assemblies are high-performance, cost-effective solutions for SFP+ and QSFP+ equipment interconnects. These hybrid cables comply with SFF-8436 and SFF-8431 specifications, offering low power consumption for short-reach interconnect applications. Each lane supports data transmission rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.

Key Features

Hybrid cable conforms to Small Form Factor SFF-8436 and SFF-8431 standards
Supports multi-gigabit data rates: 1 Gb/s - 10 Gb/s (per channel)
Maximum aggregate data rate: 40 Gb/s (4 x 10Gb/s)
Hybrid cable link length up to 5m (passive limiting)
High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector
Power Supply: +3.3V
Low power consumption: 0.02 W (typical)
Operating Temperature Range: 0°C to 70°C

Applications

10G/40Gigabit Ethernet
InfiniBand 4x SDR, DDR, QDR
Switches, Routers, and HBAs
Data Centers
Fiber Channel

QSFP Cable Series

Part Number	Description
HL-QSFP+40G-Optical cable
HL-QSFP-40G-AOC1M	QSFP+ to QSFP+, Active optical cable 1M
HL-QSFP-40G-AOC3M	QSFP+ to QSFP+, Active optical cable 3M
HL-QSFP-40G-AOC5M	QSFP+ to QSFP+, Active optical cable 5M
HL-QSFP-40G-AOC7M	QSFP+ to QSFP+, Active optical cable 7M
HL-QSFP-40G-AOC10M	QSFP+ to QSFP+, Active optical cable 10M
HL-QSFP-40G-AOC20M	QSFP+ to QSFP+, Active optical cable 20M
HL-QSFP-40G-AOC30M	QSFP+ to QSFP+, Active optical cable 30M
HL-QSFP-40G-AOC50M	QSFP+ to QSFP+, Active optical cable 50M
HL-QSFP-40G-AOC100M	QSFP+ to QSFP+, Active optical cable 100M
HL-QSFP+40G Copper Cable
HL-QSFP-H40G-CU1M	QSFP+ to QSFP+ Passive Copper Cable 1M
HL-QSFP-H40G-CU2M	QSFP+ to QSFP+ Passive Copper Cable 2M
HL-QSFP-H40G-CU3M	QSFP+ to QSFP+ Passive Copper Cable 3M
HL-QSFP-H40G-CU4M	QSFP+ to QSFP+ Passive Copper Cable 4M
HL-QSFP-H40G-CU5M	QSFP+ to QSFP+ Passive Copper Cable 5M
HL-QSFP-H40G-ACU7M	QSFP+ to QSFP+ Active Copper Cable
HL-QSFP-H40G-ACU10M	QSFP+ to QSFP+ Active Copper Cable
HL-QSFP-4SFP+ Copper Cable
HL-QSFP-4SFP10G-CU0.5M	QSFP+ to 4SFP+ Passive Copper Cable 0.5M
HL-QSFP-4SFP10G-CU1M	QSFP+ to 4SFP+ Passive Copper Cable 1M
HL-QSFP-4SFP10G-CU3M	QSFP+ to 4SFP+ Passive Copper Cable 3M
HL-QSFP-4SFP10G-CU5M	QSFP+ to 4SFP+ Passive Copper Cable 5M
HL-QSFP-4SFP+ Optical Cable
HL-QSFP-4SFP10G-AOC1M	QSFP+ to 4SFP+ Active optical cable 1M
HL-QSFP-4SFP10G-AOC3M	QSFP+ to 4SFP+ Active optical cable 3M
HL-QSFP-4SFP10G-AOC5M	QSFP+ to 4SFP+ Active optical cable 5M
HL-QSFP-4SFP10G-AOC7M	QSFP+ to 4SFP+ Active optical cable 7M
HL-QSFP-4SFP10G-AOC10M	QSFP+ to 4SFP+ Active optical cable 10M

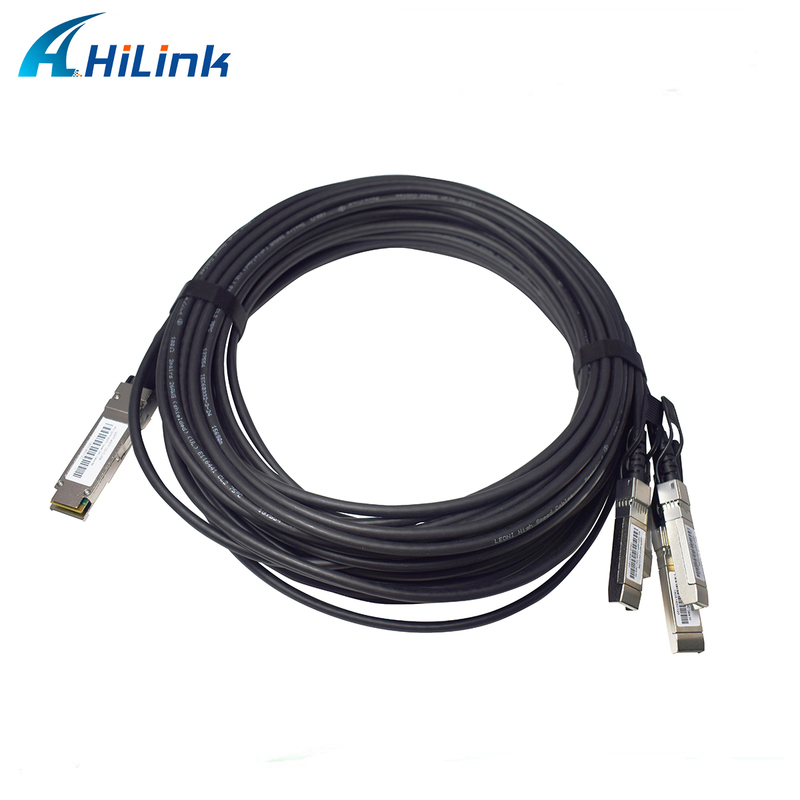

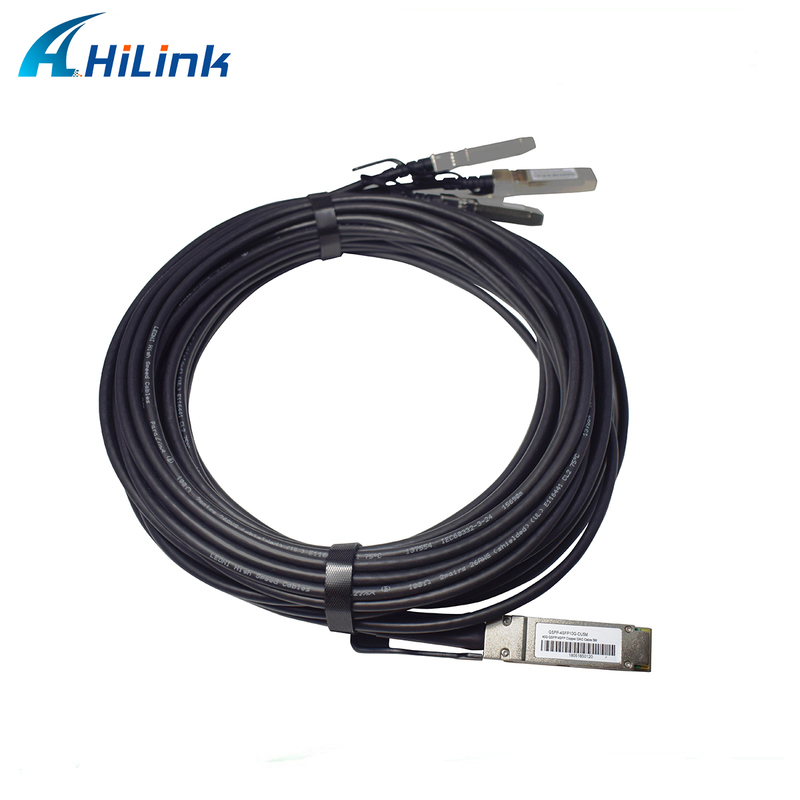

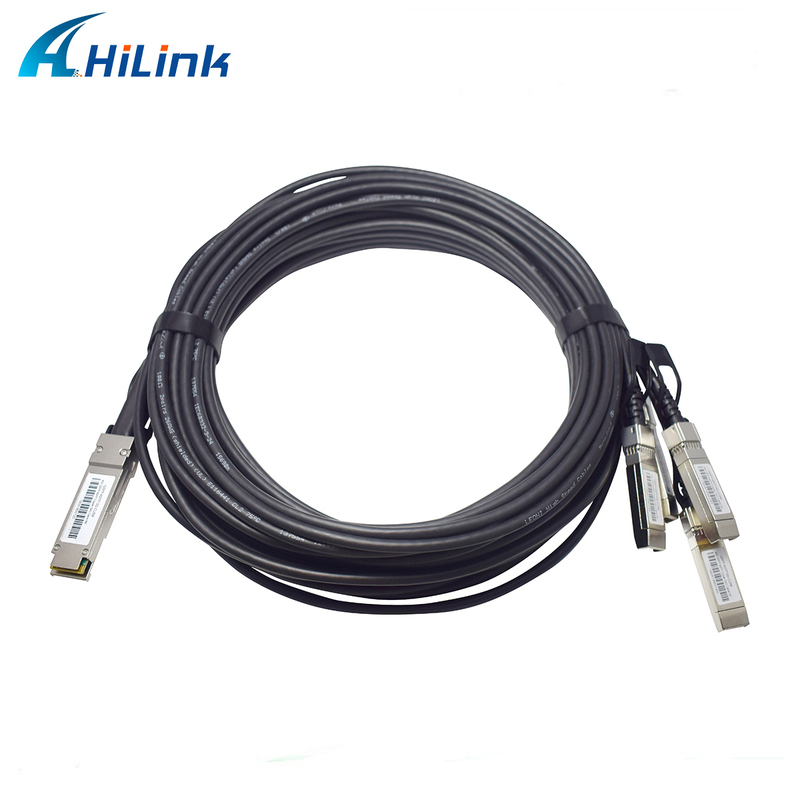

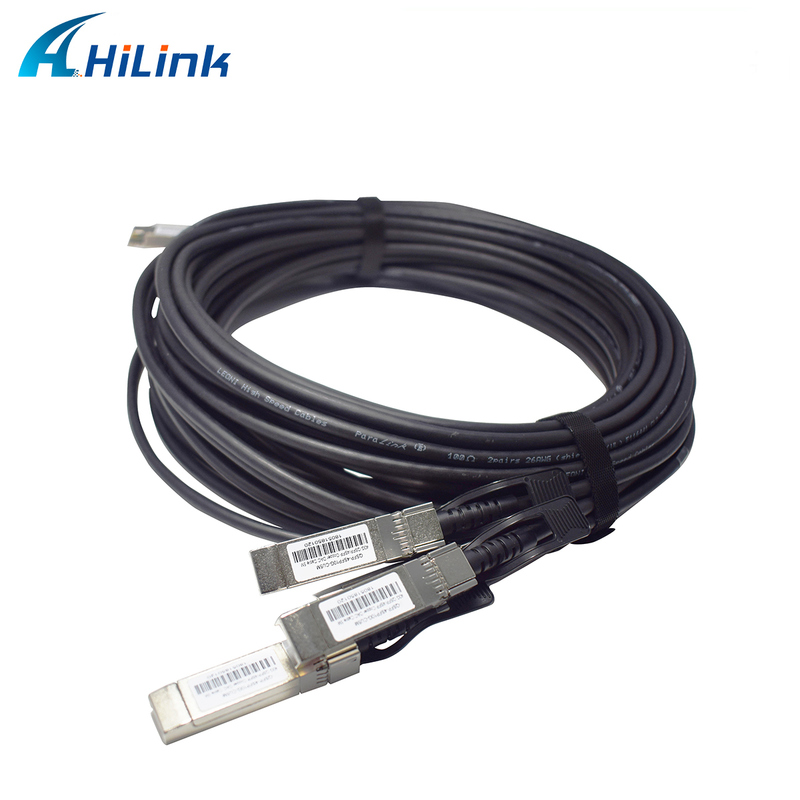

Product Image

Our Services

OEM and ODM: We accept OEM/ODM orders and can customize products according to your requirements, including designing product labels for your company.

Shipment: We ship internationally via DHL, FedEx, EMS, TNT, UPS and other carriers, with delivery typically taking 1-5 days.

Guarantee: All optical transceivers are brand new with new components and have undergone functional and aging tests. We provide a 3-year warranty from the date of shipment.
