Name: 400G QSFP-DD ZR Coherent Transceiver 0-75℃
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: 400G-QSFPDD-ZR
Price: 130.00 USD
Availability: InStock

Rumah > Produk > Modul Transceiver optik >

400G QSFP-DD ZR Coherent Transceiver 0-75℃

400G QSFP-DD ZR transceiver module

coherent optical transceiver 0-75℃

QSFP-DD transceiver with extended temperature range

Tempat asal:

Guangdong, Cina

Nama merek:

Hilink

Sertifikasi:

CE Rohs

Nomor model:

400G-QSFPDD-ZR

Hubungi Kami

Minta Kutipan

400G QSFP-DD ZR Coherent Transceiver 0-75℃

Rincian produk

Nama Produk:

400G-QSFPDD-ZR

Laju data:

400g

Suhu operasi:

0 hingga 75 ℃

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Send Inquiry know latest price

Kemasan rincian

Kotak plastik+karton

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, Alipay, PayPal/WeChat/Trade Assurance

Menyediakan kemampuan

2000 potongan/minggu

Produk terkait

100G QSFP28 SR BIDI OM4 MMF 100M LC Transceiver Optik

Dapatkan Harga Terbaik

Video

OSFP800 800G 2xSR4 Transceiver Optik 12V Transceiver Serat Optik Konektor MPO

Dapatkan Harga Terbaik

100G QSFP28 SRBD 100m Bi-Di Duplex LC Hot Pluggable 850/900nm VCSEL PAM4 2x50G Multimode

Dapatkan Harga Terbaik

25G SFP28 BIDI Optic Module Fiber Connector LC 0 sampai 70C 3km/10km/40km/60km

Dapatkan Harga Terbaik

Hubungi Kami

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Hubungi Sekarang

Deskripsi Produk

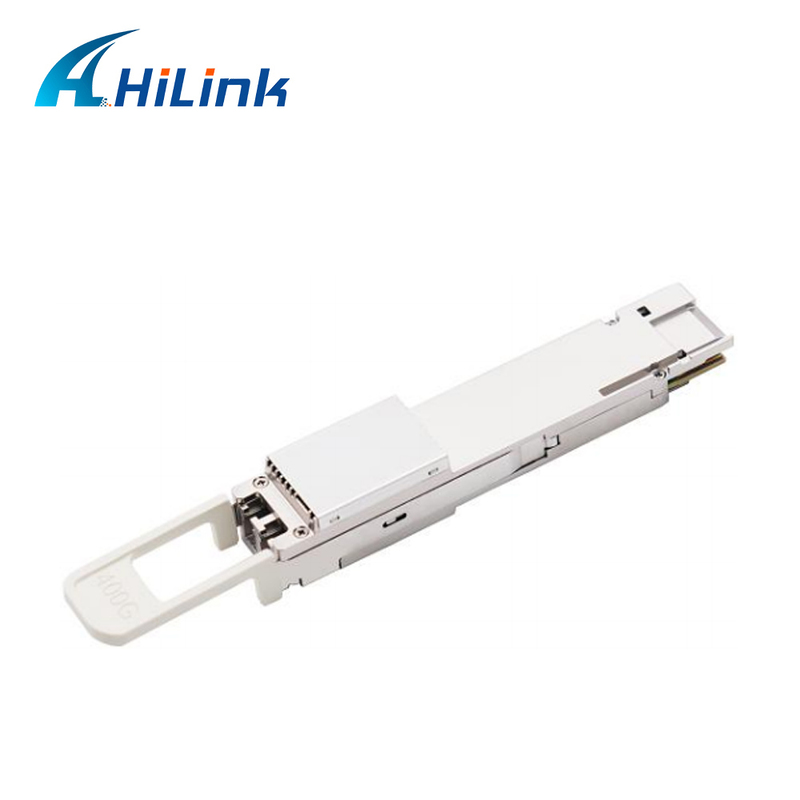

400G QSFP-DD ZR Coherent Transceiver 0-75℃

Product Overview

The 400G QSFP-DD ZR Transceiver is a high performance, cost effective module for optical data communication applications to 400G. The 400G QSFP-DD ZR is designed to 400G 120Km DCI DWDM applications without inline chromatic dispersion compensation.

Features

QSFP-DD MSA compliant type 2B package
Up to 120Km transmission distance
Client signal 400GbE or 4x100GbE
Line Modulation format 400G DP-16QAM
C-band tunable, supports 100/75GHz grid spacing, support 0.1GHz fine tuning
TX power -13dBm~-9dBm tunable
Support ingress LF hold-off time configure
Support hitless firmware upgrade
Compact size (18.35 mm × 93.26 mm × 8.50 mm)
Duplex LC Receptacle
Operating case temperature: 0℃ to 75°C
Maximum power consumption 18W (400GbE)
Single 3.3 V power supply
RoHS 2 compliant

Applications

Edge DCI 400GBASE-ZR application
30~40Km unamplified 400GbE P2P link
Up to 120Km P2P link with amplification

Product Images

Quality Assurance

Warranty & Quality Commitment:
All advertised optical transceivers are brand new with new components. We never use old or refurbished materials. Each unit undergoes functional and aging tests before shipment.

3-Year Warranty:
We provide a 3-year warranty for all optical transceivers from the date of shipment. OEM/ODM orders are available upon request.
