Name: 40G 100G Dual Fiber to Single Fiber CVR LC Connector 1310nm
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-DF-SF-CVR
Price: 130.00 USD
Availability: InStock

Rumah > Produk > Solusi WDM >

40G 100G Dual Fiber to Single Fiber CVR LC Connector 1310nm

40G 100G dual fiber CVR LC connector

single fiber CVR LC 1310nm

WDM solution LC connector with warranty

Tempat asal:

CINA

Nama merek:

Hilink

Sertifikasi:

CE Rohs

Nomor model:

HL-DF-SF-CVR

Hubungi Kami

Minta Kutipan

Rincian produk

Nama Produk:

Serat ganda ke serat tunggal CVR

Kondisi:

Baru

Patuh:

CE ROHS

Panjang gelombang operasi:

1310nm

Konektor:

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

Need to negotiate

Kemasan rincian

Kotak plastik+karton

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

T/T, Western Union, Alipay, PayPal/WeChat/Trade Assurance

Menyediakan kemampuan

2000 potongan/minggu

Produk terkait

Menerima Hilink 100GHz 16 Saluran DWDM MUX/DEMUX Multiplexing Divisi Panjang Gelombang Padat

Dapatkan Harga Terbaik

Perlindung Jalur Optik OLP BIDI Dengan Terminal A&B LC/UPC

Dapatkan Harga Terbaik

Video

8CH DWDM MUX DEMUX 100GHz 8 Saluran HL-DW-MUX-8CH LC/APC LC/UPC

Dapatkan Harga Terbaik

Video

CWDM 1*8CH 8Channel CWDM MUX/DEMUX 8CH 19 inci 1U CWDM Perangkat Sistem

Dapatkan Harga Terbaik

Hubungi Kami

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Hubungi Sekarang

Deskripsi Produk

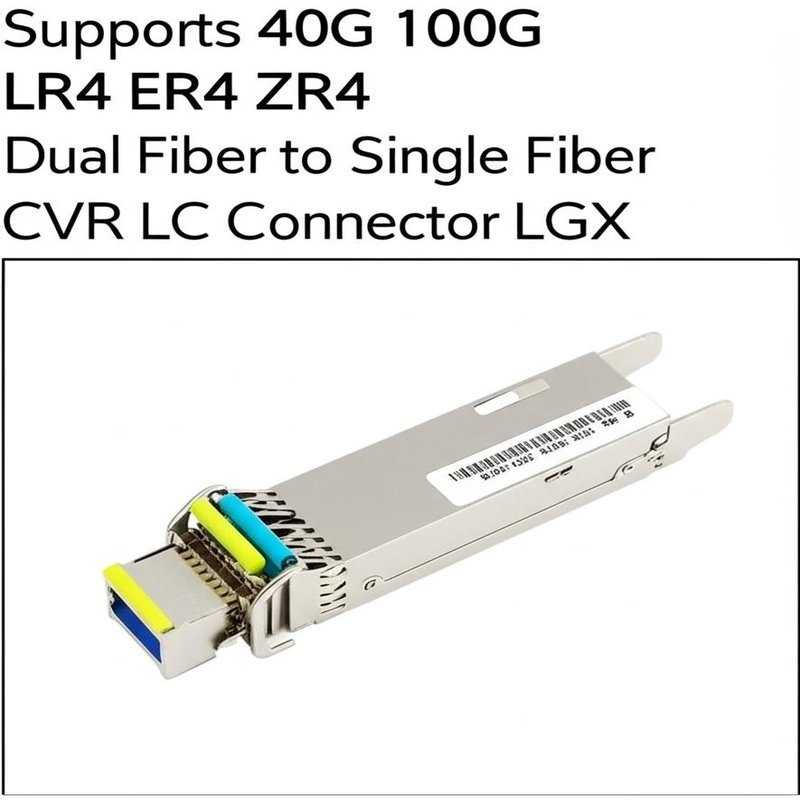

40G/100G LR4 ER4 ZR4 Dual Fiber to Single Fiber CVR LC Connector LGX

With the increasing demand for 100G data transmission and large bandwidth, fiber optic resources between data centers are becoming scarce. Our 100G dual-port to single-port converter enables bidirectional transmission of 100G LR4/ER4 optical modules over a single fiber core, allowing multiple 100G services to utilize existing dual-core fiber infrastructure - delivering significant cost savings for enterprises.

Key Features

Supports 40G/100G LR4, ER4, ZR4 dual fiber to single fiber conversion
Operating wavelength: 1310nm
LC connector compatibility
Passive device with low insertion loss

Applications

Performance Specifications

Wavelength	1310nm	Rate	40G/100G
Insertion Loss	≤ 1dB	Technology	TFF (Thin Film Filter)
Insertion Loss	≤ 2.7dB	Isolation	≥35dB
Polarization Dependent Loss	≤ 0.1ps	Return Loss	≥ 45dB
TDL (dB)	≤0.15dB	PMD (ps)	≤0.055nm
Return Loss	≥ 45dB	Directivity	≥ 45dB
Power handling	≤500mW	Fiber Type	SMF-28e
Connector	LC, SC, FC (UPC/APC)	Temperature	Operating: -40 to 85°C Storage: -40 to 85°C
Net Weight	LGX BOX: 0.5KG 4Slot 1u Rack: 2.5KG	Dimensions (HxWxD)	LGX BOX: 214.515020mm 4Slot 1u Rack: 44440160mm

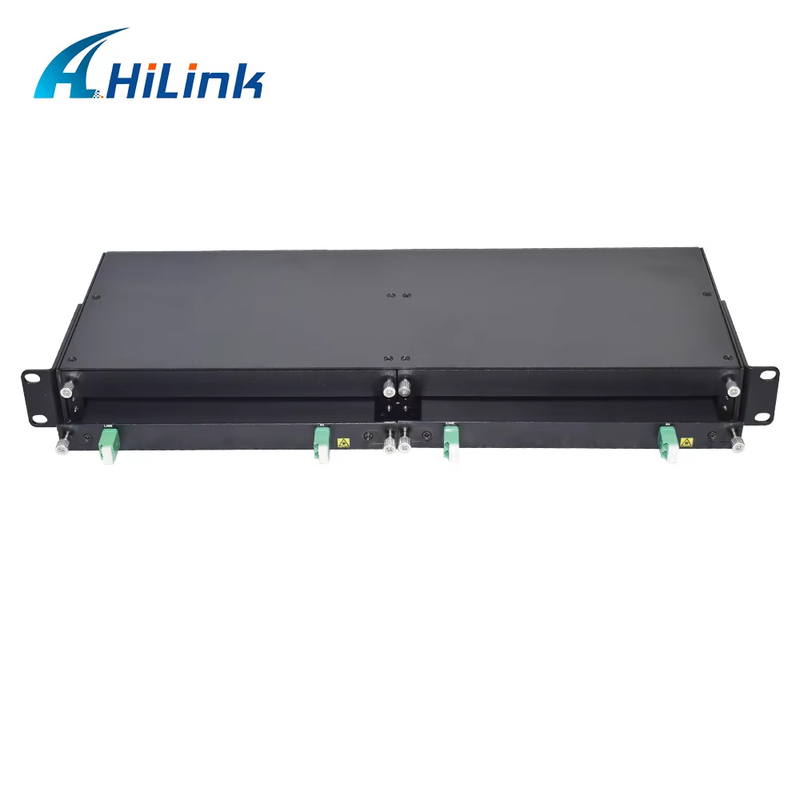

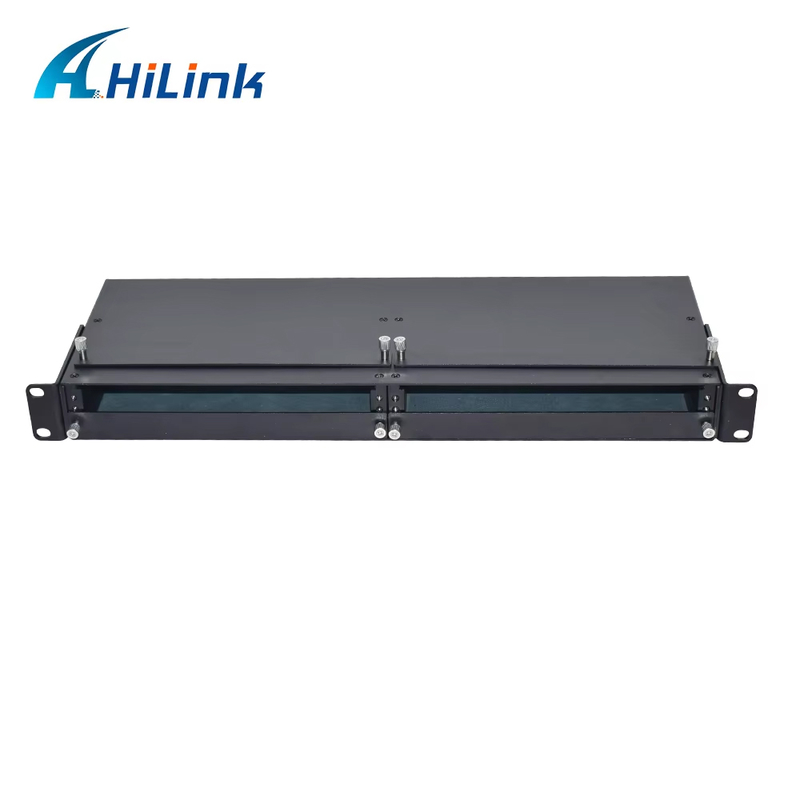

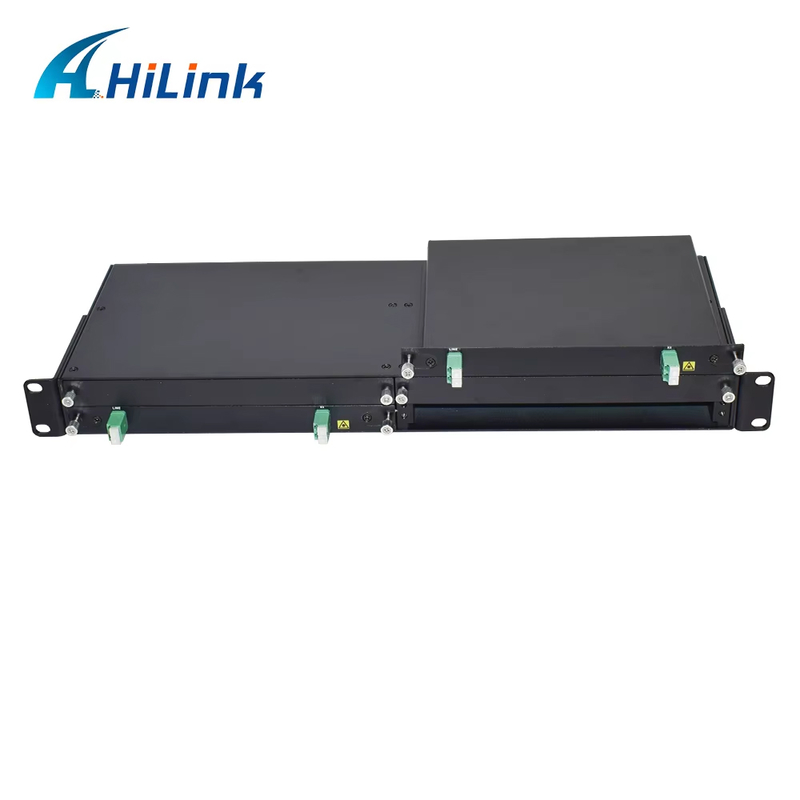

Product Images

Packaging & Shipping

Packaging: Plastic box + carton (custom packaging available upon request)
Delivery Time: 2-5 working days
Shipping Methods: DHL, FedEx, EMS, TNT, UPS (1-5 days delivery)

Our Service

OEM/ODM: Custom orders available
Quality Assurance: All modules are brand new with no refurbished materials
Testing: Each module undergoes functional and aging tests
Warranty: 3 years from shipment date
