Name: 155Mb/s BiDi Single SC, SMF, 1550nm Tx, 1310nm Rx, DFB-LD, 40km SFP Transceiver
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: 100BASE-BXU/D-40
Price: 130.00 USD
Availability: InStock

Rumah > Produk > Modul Transceiver optik >

155Mb/s BiDi Single SC, SMF, 1550nm Tx, 1310nm Rx, DFB-LD, 40km SFP Transceiver

155Mb/s BiDi SFP transceiver

Single SC SMF optical transceiver

DFB-LD 40km SFP module

Place of Origin:

Guangdong, China

Nama merek:

Hilink

Sertifikasi:

CE Rohs

Model Number:

100BASE-BXU/D-40

Hubungi Kami

Minta Kutipan

155Mb/s BiDi Single SC, SMF, 1550nm Tx, 1310nm Rx, DFB-LD, 40km SFP Transceiver

Rincian produk

Product Name:

100BASE-BXU/D-40

Data Rate:

100BASE

Reach:

40KM

Operating Temperature:

0 to 70℃

Syarat Pembayaran & Pengiriman

Minimum Order Quantity

1 pieces

Harga

Send Inquiry know latest price

Packaging Details

Plastic box+Carton

Delivery Time

5-8 working day

Payment Terms

T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance

Supply Ability

2000 Pieces/Week

Produk terkait

Video

Transceiver OSFP112 DR8+ 800G Antarmuka Ganda MPO-12 APC 1310nm 2km OSFP

Dapatkan Harga Terbaik

HL-QSFP200G-SR4 200G QSFP56 SR4 penerima optik

Dapatkan Harga Terbaik

Transceiver OSFP112 DR8 800G, antarmuka ganda MPO-12 APC, 1310nm, hingga 500m

Dapatkan Harga Terbaik

Kualitas tinggi 10G Ethernet WDM BIDI ER 40KM 1270/1330 XFP Optical Module Fiber Optic Equipment

Dapatkan Harga Terbaik

Hubungi Kami

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Hubungi Sekarang

Deskripsi Produk

155Mb/s BiDi Single SC, SMF, 1550nm Tx, 1310nm Rx, DFB-LD, 40km SFP Transceiver

Product Specifications

Attribute	Value
Product Name	100BASE-BXU/D-40
Data Rate	100BASE
Reach	40KM
Operating Temperature	0 to 70℃

Product Description

Hilink 155Mb/s BiDi Single SC, SMF, 1310nm Tx, 1550nm Rx, FP-LD, 40km SFP Transceiver

Key Features

Up to 155Mb/s Data Links
Hot-Pluggable SFP footprint
Single SC for Bi-directional Transmission
Built-in 1310nm FP Laser
Built-in 1310/1550nm WDM Filter
Built-in digital diagnostic functions
Up to 40 km on 9/125μm SMF
Single +3.3V Power Supply
Isolation > 30dB, Cross Talk < -45dB
Commercial operating temperature range: 0°C to 70°C
Very low EMI and excellent ESD protection
RoHS compliant

Applications

SDH STM-1/ SONET OC-03
Fast Ethernet
WDM Application
Other Optical Link

Hilink 100BASE Bi-Directional transceiver is a high performance, cost effective module, which is compliant with SC Optics interface with built in WDM for Bi-Directional serial optical data communication applications. This module is designed for Single-Mode single fiber, operates at the normal wavelength of 1310/1550nm. The transmitter section incorporates FP and driver IC with temperature compensation and automatic power control circuit, which makes the transmitter section output power and Extinction ration stabled in operation temperature. The receiver section incorporates an efficient InGaAs photodiode and transimpedance with AGC for wide dynamic range.

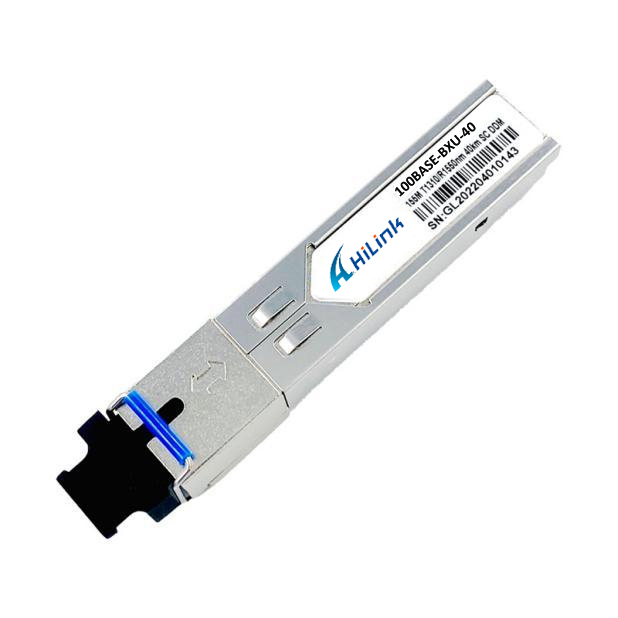

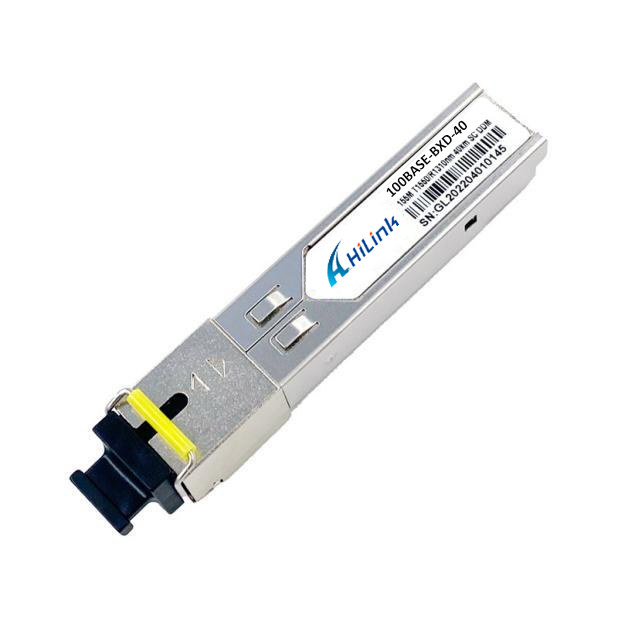

Product Images

Our Service

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
