Name: 40Gb/s QSFP+ 100km Optical Transceiver Hot Pluggable C Band EML APD Duplex LC Connector Single mode DDM RoHS Compliant for 40G Ethernet
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP-40G-SWDM4
Price: 900.00 USD
Availability: InStock

Rumah > Produk > QSFP + Transceiver >

40Gb/s QSFP+ 100km Optical Transceiver Hot Pluggable C Band EML APD Duplex LC Connector Single mode DDM RoHS Compliant for 40G Ethernet

40Gb/s QSFP+ optical transceiver 100km

QSFP+ transceiver C Band EML APD

40G Ethernet transceiver LC connector

Tempat asal:

Guangdong, Cina

Nama merek:

HILINK

Sertifikasi:

CE FCC Rohs

Nomor model:

HL-QSFP-40G-SWDM4

Hubungi Kami

Minta Kutipan

40Gb/s QSFP+ 100km Optical Transceiver Hot Pluggable C Band EML APD Duplex LC Connector Single mode DDM RoHS Compliant for 40G Ethernet

Rincian produk

Nama Produk:

40G QSFP+ SWDM4

Konektor:

Duplex LC

laju data:

40g

Jarak:

240m@OM3/350M@OM4

Kisaran suhu:

0℃ ~ +70℃

Sertifikasi:

RoHS Compliant

Jenis:

Transceiver serat optik, 40G QSFP+

Fungsi Diagnostik Digital:

Bawaan

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 pcs

Harga

Bisa dinegosiasikan

Kemasan rincian

Tas statis, Flat Plastik, kotak Ritel, sesuai kebutuhan

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

Western Union, T/T, l/c

Menyediakan kemampuan

100 pcs/bulan

Produk terkait

40Gb/s QSFP+ 100km Optical Transceiver Hot Pluggable C Band EML APD Duplex LC Connector Mode tunggal DDM RoHS Kompatibel untuk 40G Ethernet

Dapatkan Harga Terbaik

Modul Transceiver Optik QSFP28 LR4 100Gb/s 20KM Dapat Dicolokkan Panas Konektor LC Dupleks RoHS Mode Tunggal

Dapatkan Harga Terbaik

Video

Modul Optik OSFP 800G DR8+ 1310nm 2km OSFP112 Konektor MPO-12 Ganda untuk Pusat Data

Dapatkan Harga Terbaik

QSFP200G QSFP56 200G SR4 Transceiver Optik Hot Pluggable 70m@OM3 100m@OM4 FEC Serat Multimode MPO12 Tunggal RoHS Sesuai Kecepatan Tinggi untuk Tautan Ethernet 200GBASE-SR4 Pusat Data

Dapatkan Harga Terbaik

Hubungi Kami

86-755-8317-6243

Hubungi Sekarang

Deskripsi Produk

40Gb/s QSFP+ 100km Optical Transceiver

Product Specifications

Attribute	Value
Products name	40G QSFP+ SWDM4
Connector	Duplex LC
Data rate	40G
Distance	240m@OM3/350m@OM4
Temperature Range	0℃ ~ +70℃
Certification	RoHS Compliant
Type	Fiber Optic Transceivers, 40G QSFP+
Digital diagnostic functions	Built-in

Product Description

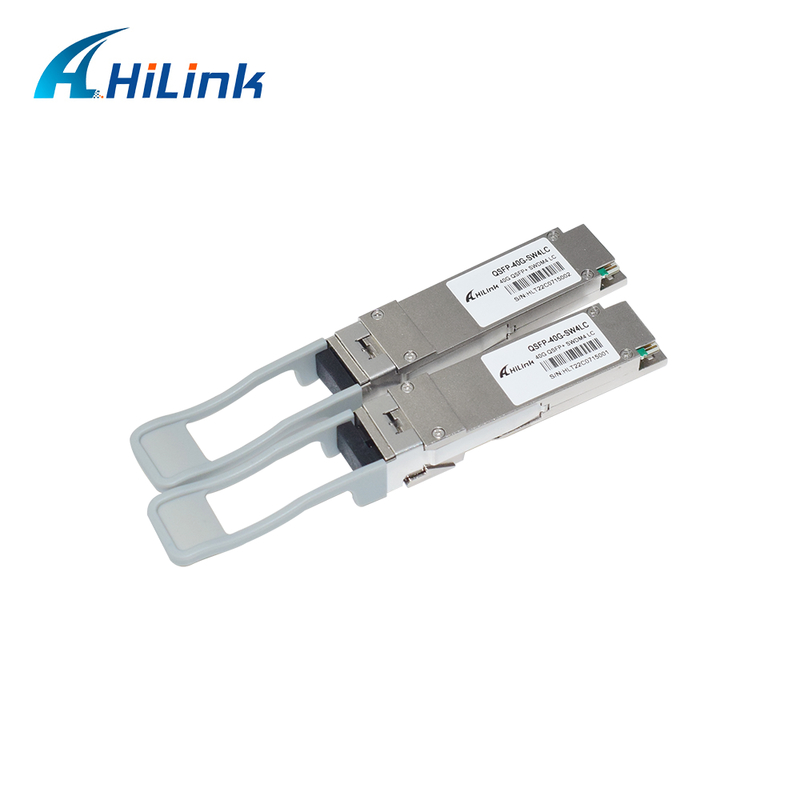

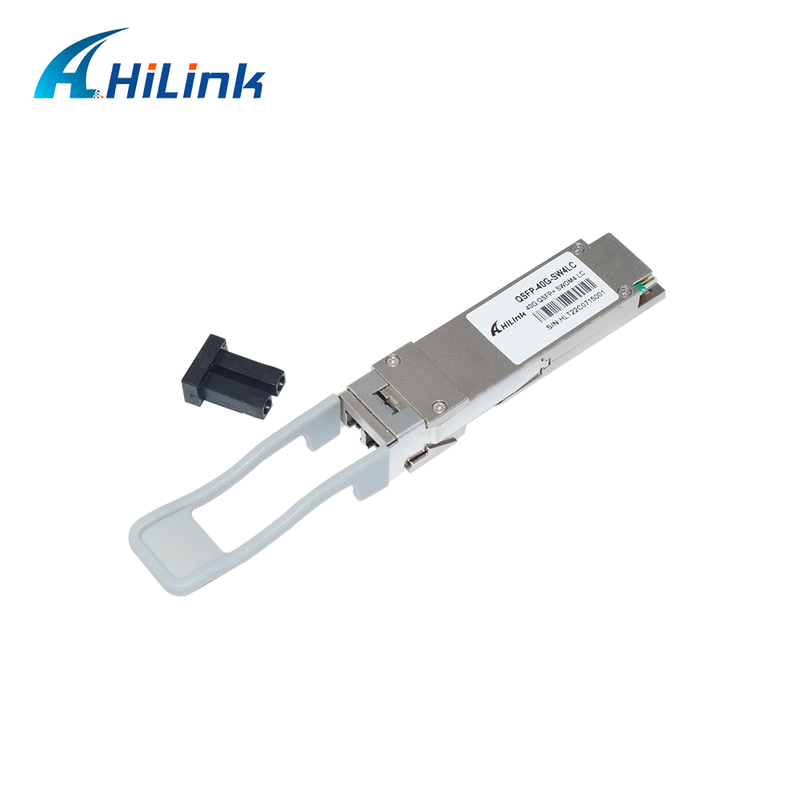

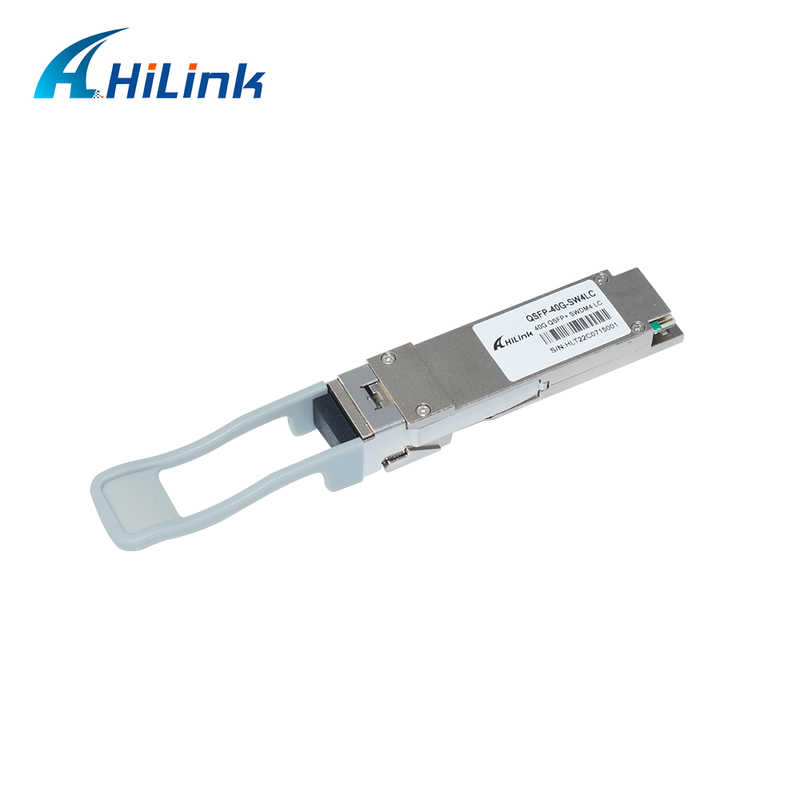

The 40G QSFP+ SWDM4 transceiver modules are designed for use in 40G Ethernet links over duplex multimode fiber. Four channels/lanes in the 850-940nm region @ 10Gbps to transport the Ethernet signal. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA.

Key Features

Compliant with QSFP+ MSA
Compliant with SWDM MSA
Compliant with SFF-8636
Compliant with IEEE 802.3ba
Hot-pluggable QSFP+ form factor
4x10Gb/s VCSEL-based SWDM transmitter
Supports 41.2Gbps aggregate bit rate
Power dissipation <3.5W
Maximum link length of 240m on OM3 MMF and 350m on OM4 MMF
Case temperature range of 0°C to 70°C
Duplex LC receptacles
XLPPI electrical interface
RoHS compliant

Applications

40G Ethernet over Duplex MMF

Our Services

OEM and ODM: OEM/ODM order is available.

Guarantee

We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

What We Supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.

Packaging & Shipping

International Express: DHL, FedEx, EMS, TNT, UPS and so on. It takes 3-7 days.
